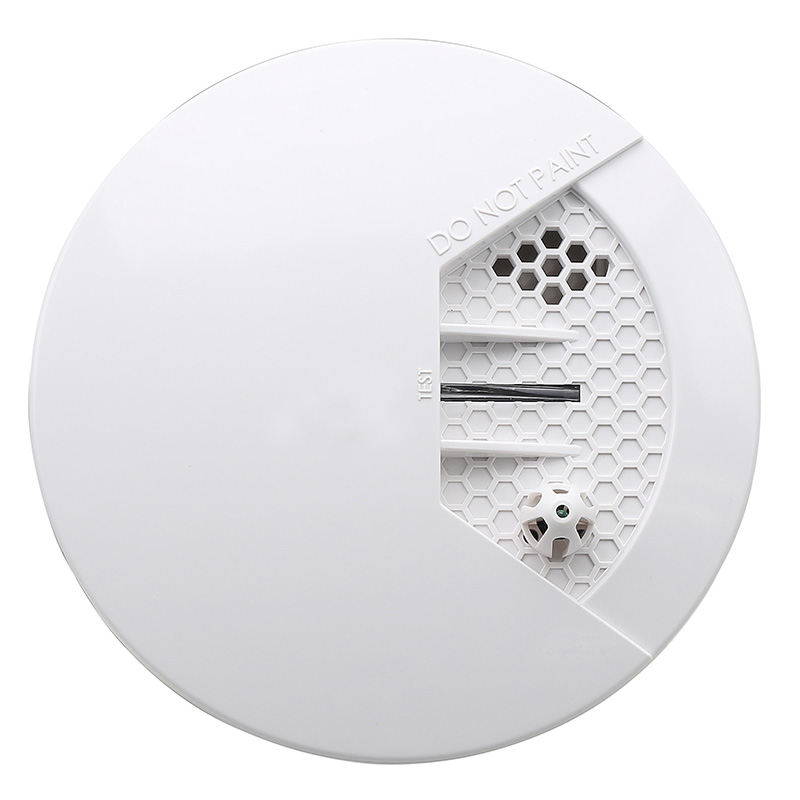

SensorWorks LS134H Smoke and Heat Detector with LoRaWAN™ Certified Module

Smoke and Heat Detector with LoRaWAN™ Certified Module

$402.00

Related Products

Description

The LS-134 is kinds of M2M/IoT station with LoRaWAN™ compliant for smoke and heat detectors save lives by LoRa® every day. These small but effective devices are a vital fire safety early warning system, in both the workplace and the home. While it’s critical to have smoke detectors installed both at home and at work, it’s even more important to have smoke detectors operating at home. Each year, more and more deaths occur in households. Tragically, children under five years of age die at twice the rate of all others. To prevent this from happening, many countries like Germany, the USA and Japan have imposed new strict fire codes that require a smoke or a gas detector to be installed in every single house. Based on decades of research and development, Globalsat is a leading manufacturer of the residential safety products, serving OEM customers as well as selected distribution partners worldwide. We focus on Advanced Photoelectric Sensing Technology to optimize reliability and reduce environmental risks in all of our products. We offer a comprehensive range of high-quality products for fire and gas detection. All of our products meet international standards and are available for OEM/ODM projects.

Detector Type

Single Station Smoke & Heat Detector

Battery Power

Rating Voltage: DC 3V for lithium battery

Sensitivity & Alarm
PatternUL217

1.31%/ft ~ 2.28%/ft ; Temporal Three Pattern

Sensitivity & Alarm
PatternEN14604

0.091dB/m ~ 0.149dB/m ; Temporal Three Pattern

Smoke Sensitivity UL268

recognize component

Heat Sensitivity-UL217

57℃ ~ 65 ℃ (136℉~149℉) ; Temporal Three Pattern

Heat Sensitivity-EN 54-5

A2S:54℃ ~ 70℃ ; Temporal Three Pattern

Standby Current

Max. 15 uA(EN)/25 uA(UL) RF module: Max. 10 uA

Start Current

Max. 3.5mA

Alarm Current

Max. 100 mA RF module: Max. 60 mA

Relative Humidity

10% to 85%RH

Operate Temperature

0℃ ~ 49℃ (32℉~120℉)

LoRa® Module

LM-130H1

Antenna

CHIP Antenna

Frequency

863-870MHz (EU)
902-928MHz (US)

Transmission Power

862-870MHz (EU) @ 14dBm
902-928MHz (US) @ 20dBm

Current Consumption

Receiving: 21 mA (typical) Transmitting: 125 mA (typical)
Sleeping: 5 uA (typical)

Transmission Distance

1KM~10KM (980bps)

Receiving Sensitivity

-132dBm@ 980bps

Operate Temperature

0℃ ~ 49℃ (32℉~120℉)

Dimensions

(Diameter)120 mm x (Depth)53 mm

Weight

112.5g

Certification

UL, VdS, CE (In progress), FCC (In progress), TELEC (IC reserved)

Additional information

Weight 1 lbs
Dimensions 1 × 1 × 1 in
Brand

SensorWorks

Model Number

LS134H

Sensor Form Factor

Sensor

Application

Condition Monitoring

Technology

LoRaWAN

Sensor Type

Air Quality
