$49.85

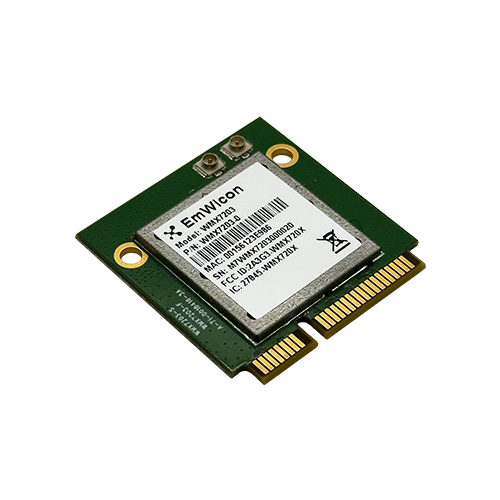

The WMX7203-0 is a tri-band dual continuous (TBDC), half-size mPCIe module based on Qualcomm WCN6856 and features 802.11ax Wi-Fi 6 and Bluetooth (BT).
It supports simultaneous operation on 2.4/5 GHz or 2.4/6 GHz.
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 1.17 × 1.06 × 0.11 in |
| Temperature | Operating: –40 °C to 85 °C (–40 °F to 185 °F); Storing: –40 °C to 135 °C (–40 °F to 275 °F) |
| Chipset Maker | Qualcomm |
| Interface Connector | mPCIe (Half) |
| RF Connector | u.FL/I-PEX |
| Brand | EmWicon |
| Model Number | WMX7203-0 |
| Dimensions | 29.8 mm × 26.8 mm × 2.8 mm |
| WLAN Form Factor | mPCIe (Half-Size) |
| Chipset Model | WCN6856-5 |
| Chipset | Qualcomm WCN6856-5 |
| Wi-Fi Frequency | Tri-Band |
| Wireless Standard | 802.11ax (Wi-Fi 6E) + BT |
| MIMO | 2×2 |
| Application | Industrial |
| Host Interface | PCI, USB |
| Certifications | FCC (US) |
