$49.85

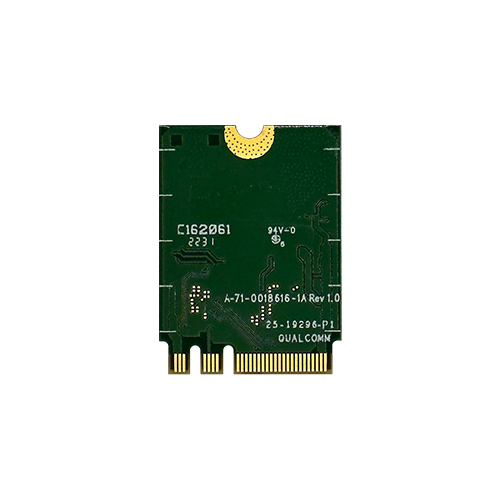

The WMX7205-1 is a tri-band dual continuous (TBDC), M.2 module based on Qualcomm QCA2066-5 and features 802.11ax Wi-Fi 6 and Bluetooth (BT).
It supports simultaneous operation on 2.4/5 GHz or 2.4/6 GHz.
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 1.18 × 0.87 × 0.09 in |
| Temperature | Operating: –30 °C to 85 °C (–22 °F to 185 °F); Storing: –40 °C to 105 °C (–40 °F to 221 °F) |
| Chipset Maker | Qualcomm |
| Interface Connector | M.2 (2230) |
| RF Connector | I-PEX MHF4 |
| Brand | EmWicon |
| Model Number | WMX7205-1 |
| Dimensions | 30 mm × 22 mm × 2.3 mm |
| WLAN Form Factor | M.2 (2230) |
| Chipset Model | QCA2066-5 |
| Chipset | Qualcomm QCA2066-5 |
| Wi-Fi Frequency | Tri-Band |
| Wireless Standard | 802.11ax (Wi-Fi 6E) + BT |
| MIMO | 2×2 |
| Application | Industrial |
| Host Interface | PCI, USB |
| Certifications | CE (EEA), FCC (US), IC (CA) |
