WNFQ-269AX(BT) is the first Qualcomm-based Wi-Fi 6 (802.11ax) module in M.2 2230 E key form factor, running PCIe (Wi-Fi) and USB (Bluetooth). It supports DBDC (dual-band, dual-concurrent) mode with a tri-band capability (2.4/5/6 GHz). WNFQ-269AX(BT) can run 2.4 GHz with 5 GHz or 6GHz concurrently, and it supports full IEEE802.11 ax/ac/a/b/g/n protocol, up to 160 MHz mode.
WNFQ-269AX(BT) designed with two spatial streams (2T2R, or 2×2) in MU-MIMO mode. With a standard M.2 E key 2230 form factor, WNFQ-269AX(BT) can accommodate all existing platforms that have an M.2 adaptor pre-integrated—no extra work with platform design.
WNFQ-269AX(BT) supports Windows, with Linux (Open Source) in the near future. The module can run on x86 and ARM-based platforms, and it supports STA mode and Soft AP Mode, recommended to run on applications including digital signage/POS, rugged computer/tablets, fanless automation PC, and other industrial environment applications that require high-speed data transmission.
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 1.18 × 0.87 × 0.08 in |
| Temperature | Operating: –10 °C to 70 °C (14 °F to 158 °F); Storing: –45 °C to 85 °C (–49 °F to 185 °F) |
| Interface Connector | WLAN: PCIe; Bluetooth 5.2: USB |
| Chipset Maker | Qualcomm |
| Interface Connector | PCIe, USB |
| RF Connector | I-PEX MHF4 |
| Brand | SparkLAN |
| Model Number | WNFQ-269AX(BT) |

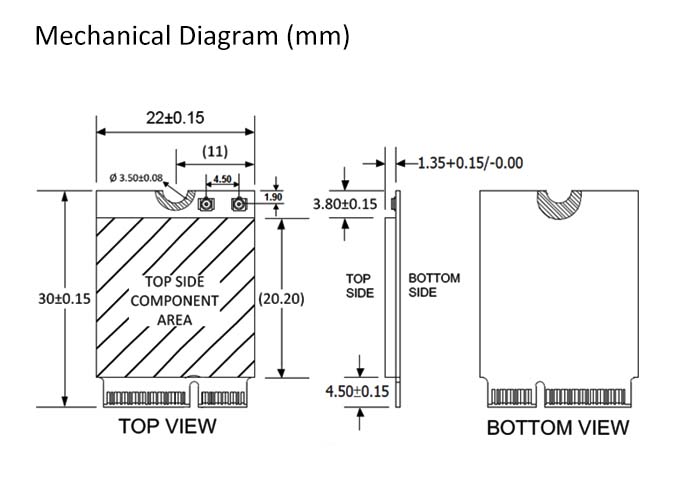

| Dimensions | 30 mm × 22 mm × 2.15 mm (1.18 in. × 0.87 in. × 0.08 in.) |
| WLAN Form Factor | M.2 (2230) |
| Chipset Model | WCN6856 |
| Chipset | Qualcomm WCN6856 |
| Wi-Fi Frequency | Tri-Band |
| MIMO | 2×2 |
| Wireless Standard | 802.11ax (Wi-Fi 6E) + BT |
| Host Interface | PCI, USB |
| Certifications | CE (EEA), FCC (US), IC (CA), NCC (NG), REACH (EU), RED (EU), RoHS (EU), TELEC (JP) |
| Warranty | 1 Year |
