Compex WLE3000HX 7A0924S mPCIe | 802.11ax (Wi-Fi 6) | 4×4 u.FL/I-PEX | Qualcomm QCN9024

Description

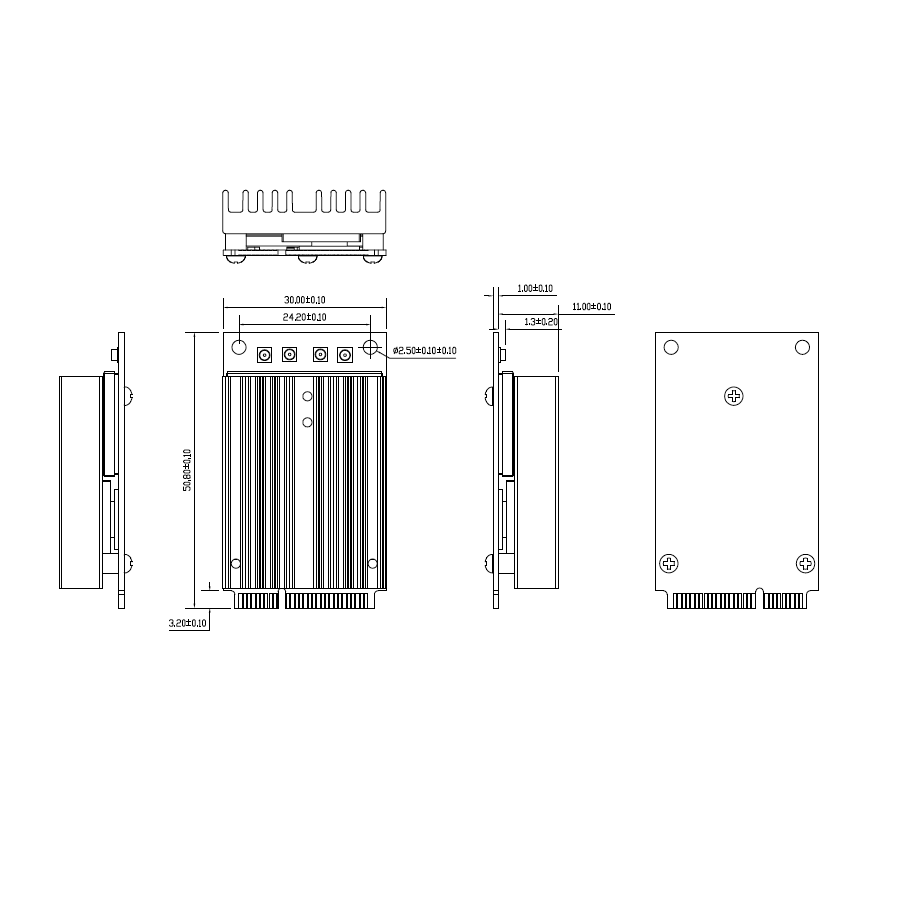

WLE3000HX is a dual-band selectable (2.4 GHz or 5 GHz) Wi-Fi 6 (802.11ax) module. It is based on Qualcomm’s QCN6024, QCN9024, or QCN9074 Pine series radio solution. This is the first 4T4R (4×4) MU-MIMO 2.4/5 GHz solution and is available in both commercial grade (QCN6024 or QCN9024) and industrial grade (QCN9074). Furthermore, WLE3000HX features a standard 30 × 51 mm dimension, making the hardware integration as seamless as possible. With four spatial streams, WLE3000HX is capable of achieving up to 4.8 Gbps with the availability of 160 MHz bandwidth.

WLE3000HX can deliver up to 20 dBm per chain for 5 GHz and 19 dBm per chain for 2.4 GHz, making it a perfect solution for customers who need to change frequency bands depending on their field applications. WLE3000HX can do both AP and STA modes, do backhaul, and provide connectivity for clients simultaneously. Based on a 3.3 V design, WLE3000HX ensures that the signal coverage is as wide as possible, and it consumes less power when compared to Qualcomm’s reference design. WLE3000HX is suitable for customers who are conscious of the power consumption of their products.

Supporting up to 4096 QAMs, WLE3000HX with OFDMA is a perfect solution for enterprise, industrial, cybersecurity, transportation, and SMB applications or appliances. FIPS L2 is available as a feature uniquely on QCN9074, for customers who care most about the cryptographic protection of their product. Furthermore, with Compex acting as a value-added manufacturer, WLE3000HX is not restricted to working just on Qualcomm’s ecosystem, but also on third-party platforms such as Intel x86 and other ARM processors such as NXP and Marvell.
