u.FL/I-PEX RF connector
🔹 Compliant with IEEE 802.11a/b/g/n/ac/ax
🔹 Supports 2×2 multi-user multi-input multi-output (MU-MIMO)
🔹 Dual-band simultaneous (DBS), up to 3.6 Gbps data rate (2×2 + 2×2 11ax DBS)
🔹 Tri-band 2.4/5/6 GHz support
🔹 20/40 MHz channel bandwidth for 2.4 GHz
🔹 20/40/80/160 MHz channel bandwidth for 5/6 GHz
🔹 Up to 286.8 Mbps using 20 MHz bandwidth, 573.5 Mbps using 40 MHz bandwidth, 1201 Mbps using 80 MHz bandwidth, and 2402 Mbps using 160 MHz bandwidth
$33.95

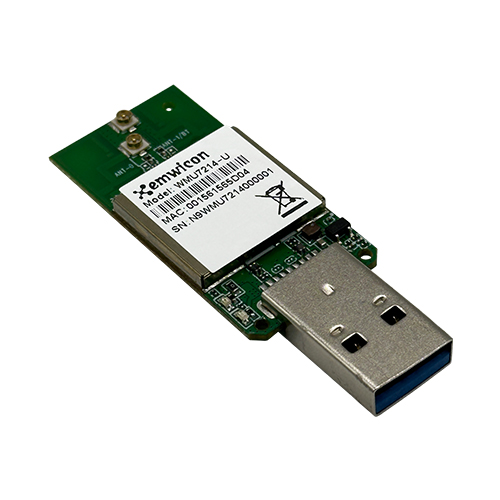

The WMU7214-U is based on the Realtek RTL8852CU chip, a highly integrated single-chip that supports two-stream 802.11ax solutions with multi-user MIMO (multiple-input, multiple-output), wireless LAN (WLAN), and integrated Bluetooth 5.2 USB in one module.
It combines a WLAN MAC, a 2T2R-capable WLAN baseband, and u.FL/I-PEX RF in a single module. The WMU7214-U provides a complete solution for a high-performance integrated wireless and Bluetooth device.
| Weight | 0.05 lbs |
|---|---|
| Dimensions | 2.15 × 0.79 × 0.18 in |
| Chipset Maker | Realtek |
| Interface Connector | USB Type A |
| RF Connector | u.FL/I-PEX |
| Model Number | WMU7214-U |
| Brand | EmWicon |
| Dimensions | 54.7 mm × 20 mm × 4.5 mm (2.15 in. × 0.79 in. × 0.18 in.) |
| WLAN Form Factor | USB (Type A) |
| Chipset Model | RTL8852CU |
| Chipset | Realtek RTL8852CU |
| Wi-Fi Frequency | Tri-Band |
| Wireless Standard | 802.11ax (Wi-Fi 6E) + BT |
| MIMO | 2×2 |
| Host Interface | USB |
| Certifications | CE (EEA), FCC (US), IC (CA), RED (EU) |
