Simplify your IoT project with AWS-ready Intelligent Cloud Connect LTE Terminals

Select Optional Accessories:
Includes SIM Card

$169.95

Please contact us for purchasing options.

Description

Intelligent Cloud Connect | Device Form Factor

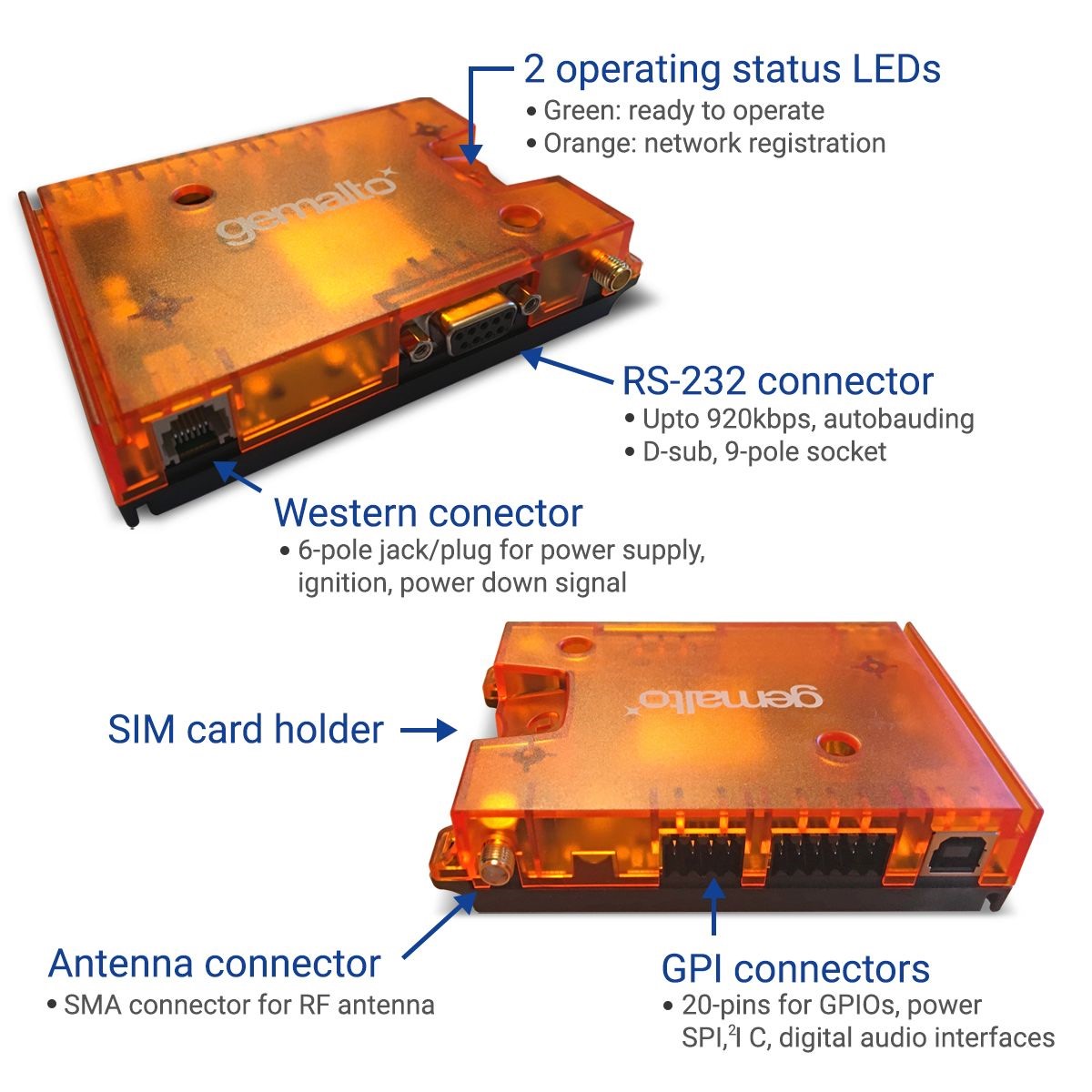

The easiest method of integration. Pre-approved and ready-to-use IoT system with industrial interfaces including USB, SPI, I2C, and RS232 along with Digital GPIO and Analogue inputs. The terminal is a popular choice for adding connectivity to existing hardware.

Cinterion M2M Terminals work out of the box to quickly and easily add M2M connectivity to smart enterprise applications. With minimal integration effort, terminals can be connected to applications via standard industrial interfaces. They are ideal for new M2M implementers and mid- to small-sized deployments offering benefits including:

  • Plug-and-play functionality
  • Certifications and pre-approvals: R&TTE, GCF, e-mark (PTCRB, FCC)
  • Standardized interfaces
  • Integrated SIM card holder

Thales’ Cinterion Terminal is a simple and reliable plug-and-play 4G M2M connectivity device that allows new M2M implementers to connect their industrial applications using wireless technology quickly. With very little integration and approval effort, it provides a cost-effective, swift solution for improving enterprise optimization technology.

Additional information

Weight 1 lbs
Dimensions 4.53 × 3.39 × 1.02 in
Frequency

4G LTE: Band 1–5, 7, 8, 12, 18–20, 28; 3G: Band 1, 2, 4, 5, 8, 9, 19; 2G: 850/900/1800/1900 MHz
Model Number

PLS62T-W-USBa
Brand

Telit Cinterion
Dimensions

115 mm × 86 mm × 26 mm
Temperature

-30° to 65°C
Product Type

Modem
Device Form Factor

Modem: Indoor Rated
Cellular Technology

4G LTE Cat 1 with Fallback
4G/LTE/3G Frequency Band

Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (AWS: 1700/2100 MHz), Band 5 (850 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 12 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 28 (700 MHz)
Carrier

Multiple Carriers
Features

with External Antenna
Power

8 to 30VDC
I/O Interface

Yes
RF Connector

SMA (Female) Antenna Connector
Certifications

CE (EEA), FCC (US), IC (CA)
Carrier Approvals

Regional Carrier approvals
Coverage Region

Global
Interface Connector

9-Pin, 20-Pin, RJ-45
