AMIT MDG200 Plug-and-Play 4G/LTE Cat 4 Socket Modem with mPCIe Adapter | MCG200-00U01 | AT&T/PTCRB/Verizon End-Device Certified
AMIT MDG200 Plug-and-Play 4G/LTE Cat 4 Socket Modem with mPCIe Adapter | MCG200-00U01 | AT&T/PTCRB/Verizon End-Device Certified - Image 2
AMIT MDG200 Plug-and-Play 4G/LTE Cat 4 Socket Modem with mPCIe Adapter | MCG200-00U01 | AT&T/PTCRB/Verizon End-Device Certified - Image 3
AMIT MDG200 Plug-and-Play 4G/LTE Cat 4 Socket Modem with mPCIe Adapter | MCG200-00U01 | AT&T/PTCRB/Verizon End-Device Certified - Image 4
AMIT MDG200 Plug-and-Play 4G/LTE Cat 4 Socket Modem with mPCIe Adapter | MCG200-00U01 | AT&T/PTCRB/Verizon End-Device Certified - Image 5
AMIT MDG200 Plug-and-Play 4G/LTE Cat 4 Socket Modem with mPCIe Adapter | MCG200-00U01 | AT&T/PTCRB/Verizon End-Device Certified - Image 6

AMIT MDG200 Plug-and-Play 4G/LTE Cat 4 Socket Modem with mPCIe Adapter | MCG200-00U01 | AT&T/PTCRB/Verizon End-Device Certified

System level pre-certified 4G/LTE connectivity for edge computing

$145.00

  • Note: The listed price includes all applicable import duties and tariffs—no hidden fees at checkout.

  • *Add antennas?
    *Add u.FL to SMA F cables?
    *Add a data plan?
    *Please read the Terms and Conditions.

Description

  • Form Factor: Modem: Embedded Socket
  • Technology: 4G LTE Cat 4 with Fallback
  • Carrier: AT&T, T-Mobile, Verizon
  • Includes MCG200-00U01 mPCIe adapter

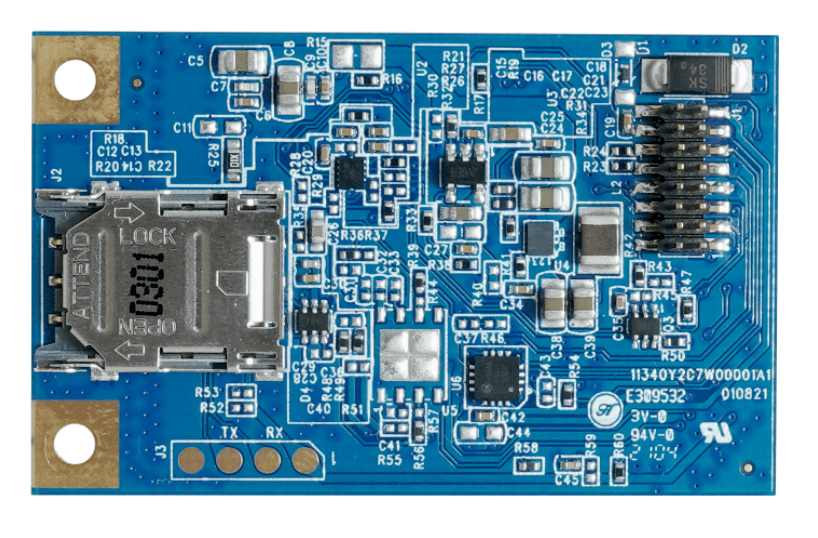

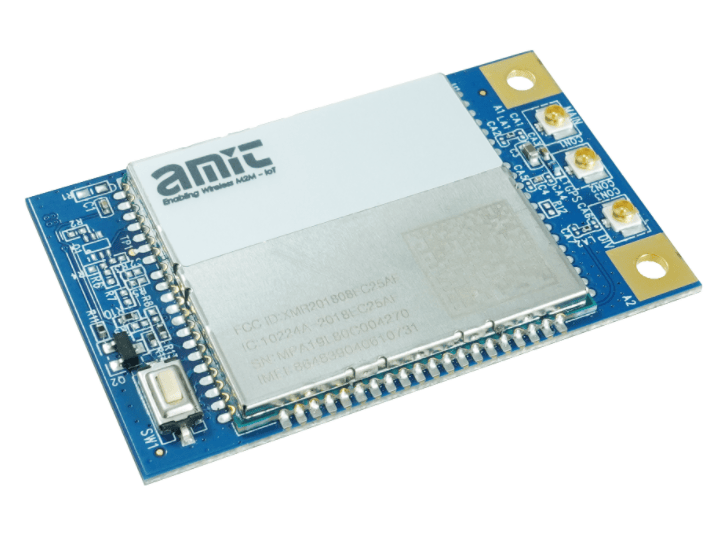

MDG200 is designed as a socket modem with mini-PCIe adapter via USB 2.0 interface. This product has cellular capability with WCDMA and LTE Cat4 and also support GNSS receiver to get location information. It also has a hinge-up nanoSIM slot to offer a wide range usage for board without or with a SIM socket. The device offers an OS ready NIC interface (Windows/Linux/FreeBSD) and friendly, web-based GUI for parameter setting and status checking.

Features

  • Easy installation. Window and Linux plug-and-play with web-based GUI.
  • Easy integraton. Mini-PCIe (USB bus interface) with SIM slot on board.
  • Flexible SIM. Either the built-in SIM slot or the external SIM
    slot on the end device can be used.
  • System-level pre-certified. Skip system-level certification with this system level/carrier-level pre-certification. A carrier certified solution with Verizon & AT&T.

Additional information

Weight 0.1 lbs
Dimensions 1.97 × 1.23 × 0.3 in
Model Number

MDG200-0T001
Brand

AMIT Wireless
Dimensions

50 mm × 31.2 mm × 7.5 mm (1.97 in. × 1.23 in. × 0.3 in.)
Temperature

–30 °C to 80 °C (–22 °F to 176 °F)
Product Type

Modem
Device Form Factor

Modem: Embedded Socket
Cellular Technology

4G LTE Cat 4 with Fallback
Carrier

AT&T, Verizon
Power

3.3/5 V
I/O Interface

USB 2.0, UART (with Board-to-Board Connector)
RF Connector

3× u.FL/I-PEX
Operating System Support

Windows, Linux
Certifications

CE (EEA), FCC (US), PTCRB (US & CA)
Carrier Approvals

AT&T, Verizon
Coverage Region

Global
