Includes 3-year NetCloud Mobile Essentials and Advanced plans
$3,099.00

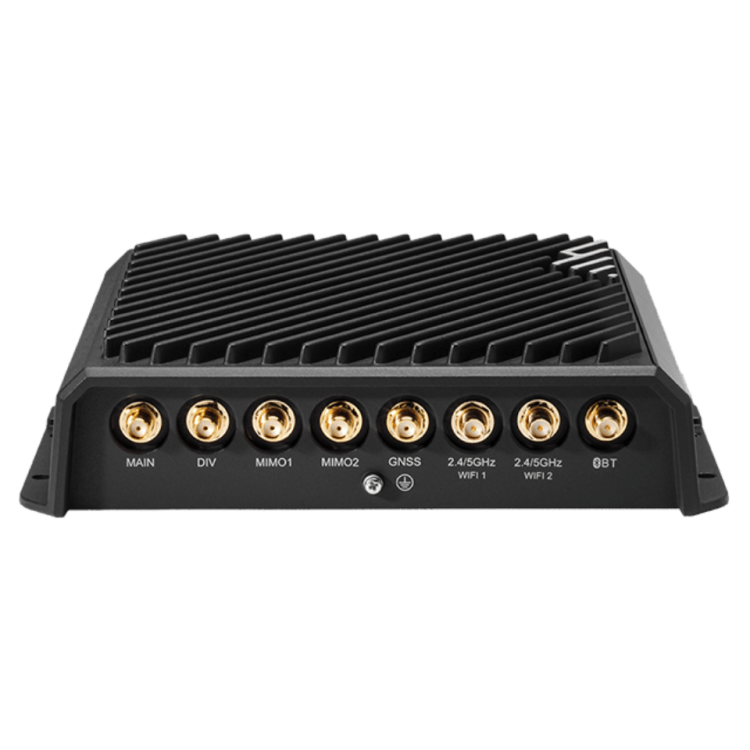

Ericsson Cradlepoint’s NetCloud Mobile Performance Service with the R1900 Series router is a ruggedized 5G networking platform, designed to provide persistent connectivity for in-vehicle deployments. Ericsson Cradlepoint NetCloud provides connectivity, network, security, location, and IoT services to connect everything in the vehicle while providing access to IT for remote management, troubleshooting, and analytics. For organizations that depend on field forces and mobile networks, the Ericsson Cradlepoint R1900 Series Router with the NetCloud Mobile Performance Service plan provides a ruggedized GNSS/GPS-enabled in-vehicle network solution. When coupled with the Advanced Mobile Performance Service plan, it provides threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality including location tracking and cellular coverage maps. The R1900 accommodates environmentally harsh environments while delivering enterprise-class standards of reliability, scalability, comprehensive management, and security.
| Weight | 6.3 lbs |
|---|---|
| Dimensions | 6.77 × 5.83 × 1.61 in |
| Temperature | Operating: –30 °C to 70 °C (–22 °F to 158 °F); Storing: –40 °C to 85 °C (–40 °F to 185 °F) |
| Interface Connector | RJ-45, USB Type A |
| Model Number | TAA-MBA3-19005GB-GA |
| Brand | Ericsson |
| Dimensions | 172 mm × 148 mm × 41 mm (6.77 in. × 5.82 in. × 1.61 in.) |
| Product Family | Ericsson Cradlepoint R1900 |
| Product Type | Router |
| Device Form Factor | Router: Outdoor/Rugged |
| Cellular Technology | 5G with Fallback |
| 4G/LTE/3G Frequency Band | Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (AWS: 1700/2100 MHz), Band 5 (850 MHz), Band 6 (800 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 9 (1700/1800 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 21 (1500 MHz), Band 25 (1900 MHz), Band 26 (850 MHz), Band 28 (700 MHz), Band 29 (700 MHz), Band 30 (2300 MHz), Band 32 (1500 MHz), Band 34 (2000 MHz), Band 38 (2600 MHz), Band 39 (1900 MHz), Band 40 (2300 MHz), Band 41 (2500 MHz), Band 42 (3500 MHz), Band 43 (3700 MHz), Band 46 (5200 MHz), Band 48 (3500 MHz), Band 66 (1700/2100 MHz), Band 71 (600 MHz) |
| Carrier | AT&T, EE, T-Mobile, Telstra, Verizon |
| Coverage Region | Global |
| Features | Dual 4FF SIM Slots with Auto-Carrier Selection |
| Frequency | 5G: n1/2/3/5/7/8/12/20/25/28/38/40/41/48/66/71/77/78/794G LTE: 1/2/3/4/5/7/8/12/13/14/18/19/20/21/25/26/28/29/30/32/34/38/39/40/41/42/43/46/48/66/713G: 1/2/3/4/5/6/8/9/20 |
| Power | 9 to 36 V DC |
| I/O Interface | 4× GbE (LAN/WAN Switchable), Dual-Band, Dual-Concurrent, 802.11ax (Wi-Fi 6), 1× GPIO, 1× RS232, 1× USB 2.0 |
| RF Connector | 4× SMA Female (Cellular), 2× RP-SMA (Wi-Fi), 1× RP-SMA (Bluetooth), 1× SMA (GPS) |
| Certifications | E-Mark (EU), FCC (US), GCF (Global), IC (CA), REACH (EU), RoHS (EU), UL (Global), WEEE (EU), PTCRB (US & CA), RCM/A-Tick/C-Tick (AU & NZ) |
| Carrier Approvals | AT&T, EE, Telstra, T-Mobile, Verizon |
