🎁 One free year of AirLink Complete included
$1,559.00
The supercharged AirLink XR80 is optimized for fixed and mobile applications. The available dual-5G cellular radio and 5X4 MIMO Wi-Fi 6 deliver flexibility for customized configurations. The AirLink XR80 supports complete device-to-cloud security, reduces your total cost of ownership with ALMS out-of-band management, and enables long-term expandability and upgradability with the cartridge-based design.
The AirLink XR80 is a fully supported, out-of-the-box solution with integrated device management and 24/7 technical support. AirLink Connection Manager delivers complete VPN security, and AirLink Professional Services maximizes your system performance and customer satisfaction.
Mobile mission-critical applications in public safety and field service fleets, Fixed Wireless Access, SCADA, Edge, and industrial IoT.
| Weight | 6 lbs |
|---|---|
| Dimensions | 8.66 × 8.66 × 2.09 in |
| Temperature | Operating: –30 °C to 70 °C (–22 °F to 158 °F); Storing: –40 °C to 85 °C (–40 °F to 185 °F) |
| Interface Connector | RJ-45, RS232, USB Type C |
| Model Number | XR80-1104791 |
| Brand | Semtech |
| Dimensions | 220 mm × 220 mm × 53mm (8.66 in. × 8.66 in. × 2.08 in.) |
| Product Family | Semtech XR |
| Product Type | Router |
| Device Form Factor | Router: Indoor |
| Cellular Technology | 5G with Fallback |
| 4G/LTE/3G Frequency Band | Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (AWS: 1700/2100 MHz), Band 5 (850 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 17 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 25 (1900 MHz), Band 26 (850 MHz), Band 28 (700 MHz), Band 29 (700 MHz), Band 30 (2300 MHz), Band 32 (1500 MHz), Band 38 (2600 MHz), Band 39 (1900 MHz), Band 40 (2300 MHz), Band 41 (2500 MHz), Band 42 (3500 MHz), Band 46 (5200 MHz), Band 48 (3500 MHz), Band 66 (1700/2100 MHz), Band 71 (600 MHz) |
| Carrier | AT&T, T-Mobile, Verizon |
| Coverage Region | Global |
| Frequency | 5G: n1/2/3/5/7/8/12/20/25/28/41/48/66/71/77/78/794G LTE: 1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/38/39/40/41/42/46/48/66/713G: 1/2/3/4/5/6/8/9/19 |
| Power | 7 to 36 V DC |

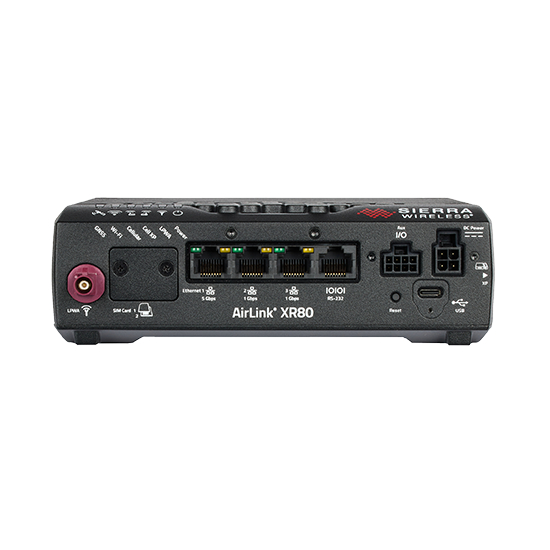

| I/O Interface | 3× RJ-45 Ethernet (Dual RS232), USB-C 3.2, Dual SIM |

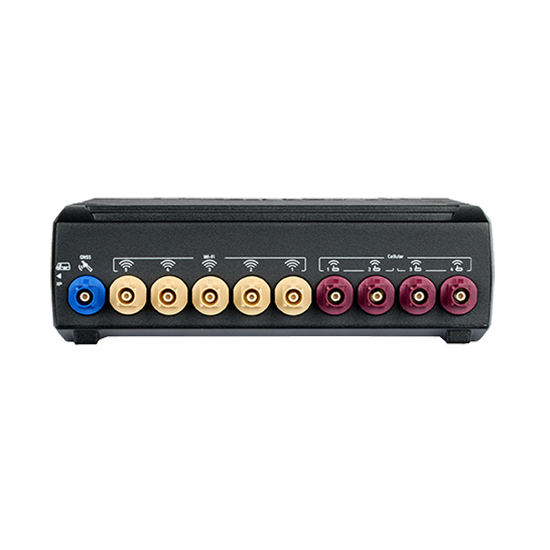

| RF Connector | 11× FAKRA (Dual 4×4 Cellular, 5×4 Wi-Fi, GNSS, LPWAN) |
| Certifications | CE (EEA), FCC (US), GCF (Global), IC (CA), REACH (EU), RED (EU), WEEE (EU), PTCRB (US & CA), RCM/A-Tick/C-Tick (AU & NZ) |
| Carrier Approvals | AT&T, T-Mobile, Verizon |
