☔ IP67 rated
Comes with 2× waterproof ethernet connectors (ACW-112), mounting kit set, and Ethernet splitter
$3,247.00

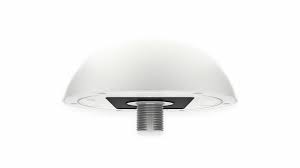

The HD1 Dome Pro optimizes network performance using PoE functionality. Leverage the power of SpeedFusion by simply connecting Peplink PoE routers for a mega-bandwidth channel with the simplest failover option.

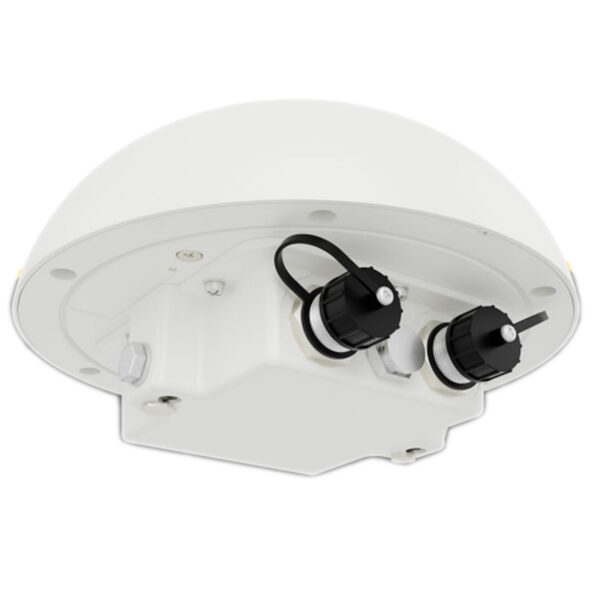

The Peplink Max HD1 Dome Pro is designed to meet your needs, with a simple design that offers a multitude of installation options, even on poles and walls! If mounting is not needed, simply connect an ethernet cable.
| Weight | 4 lbs |
|---|---|
| Dimensions | 4.33 × 4.33 × 4.53 in |
| Interface Connector | SIM |
| Brand | Peplink |
| Model Number | MAX-HD1-DOM-PRO-5GH |
| Dimensions | 110 mm × 110 mm × 115 mm (4.33 in. × 4.33 in. × 4.53 in.) |
| Temperature | –40 °C to 65 °C (–40 °F to 149 °F) |
| Product Family | Peplink MAX HD1/HD2 |
| Product Type | Router |
| Device Form Factor | Router: Outdoor/Rugged |
| Cellular Technology | 5G with Fallback |
| 4G/LTE/3G Frequency Band | Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (AWS: 1700/2100 MHz), Band 5 (850 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 17 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 25 (1900 MHz), Band 26 (850 MHz), Band 28 (700 MHz), Band 29 (700 MHz), Band 30 (2300 MHz), Band 32 (1500 MHz), Band 34 (2000 MHz), Band 38 (2600 MHz), Band 39 (1900 MHz), Band 40 (2300 MHz), Band 41 (2500 MHz), Band 42 (3500 MHz), Band 46 (5200 MHz), Band 48 (3500 MHz), Band 66 (1700/2100 MHz), Band 71 (600 MHz) |
| Carrier | AT&T, FirstNet, T-Mobile |
| Coverage Region | Global |
| Features | Redundant 4FF Nano SIM Slots |
| Frequency | 5G: n1/2/3/5/7/8/12/20/25/28/38/41/66/71/77/78/794G LTE: 1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/46/48/66/71 |
| Power | 802.3af PoE+ |
| I/O Interface | 1× 10/100/1000M Ethernet, 1× 2×2 MIMO (Wi-Fi 6) |
| RF Connector | 4×4 MIMO (Cellular, Internal), 2×2 MIMO (Wi-Fi, Internal), 1× GPS |
| Certifications | CE (EEA), FCC (US), RoHS (EU) |
| Carrier Approvals | AT&T, FirstNet, T-Mobile |
