4 Gbps downlink/700 Mbps uplink (5G), 2 Gbps downlink/150 Mbps uplink (4G LTE Cat 20)
2— embedded cellular modems with redundant SIM slots

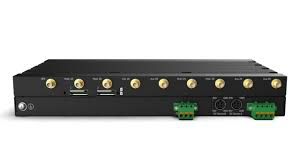

Includes 8× LTE antennas, 4× dual-band Wi-FI antennas, 1× GPS active antenna, 1× power supply, 1× 3-pin terminal block connector, 1× 4-pin terminal block connector, 1× grounding cable and rubber foot pad set, 1× pair of mounting brackets
$9,999.00

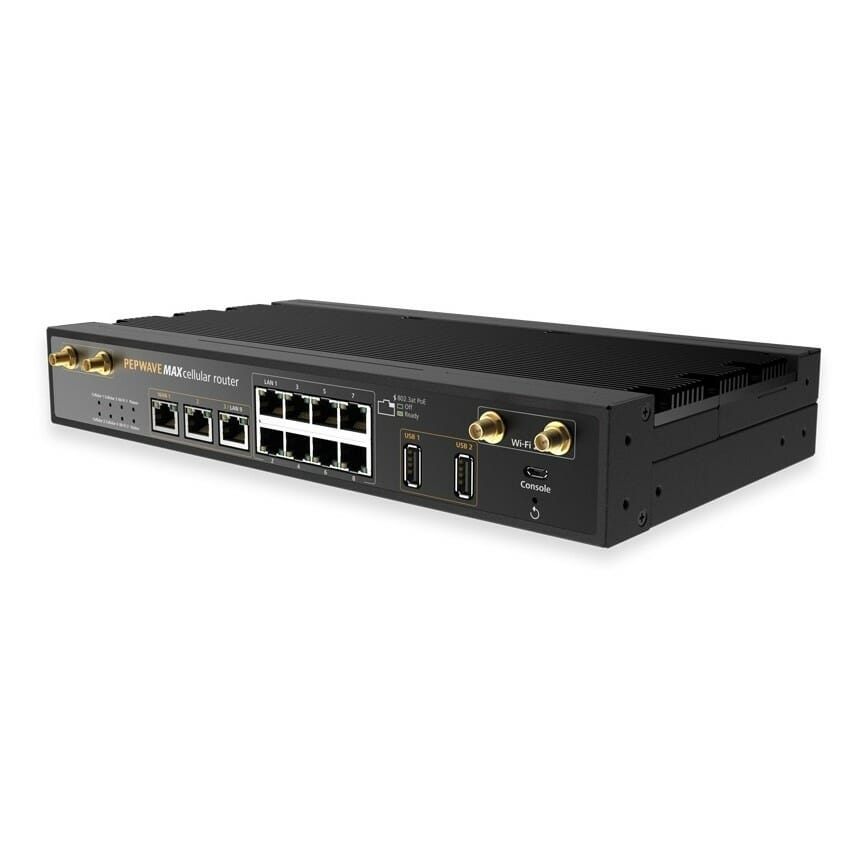

The MBX 5G is a 5G Quad Cellular mobile powerhouse that supports gigabit LTE and features a swappable cellular module when an upgrade is desired. Having redundant SIM slots and multi-radio capabilities, the MBX 5G provides speed, reliability, and coverage by combining the best of both 5G and LTE. The MBX 5G also boasts a 2.5 Gbps throughput, giving your wired connections plenty of time to operate in concert with wireless connections
Its compact form paired with its fanless design makes it suitable for industrial applications, while features such as ignition sensing make it ready for on-the-go deployments.
The MAX-HD2-MBX-5GH-T is an MBX 5G router that contains two embedded cellular modems with redundant SIM slots. While primarily designed for North America, it works globally.
| Weight | 7.5 lbs |
|---|---|
| Dimensions | 1.69 × 11.5 × 6.97 in |
| Chipset Maker | ARM |
| Interface Connector | 3-Pin, 4-Pin, USB |
| WAN Ports | 2 |
| LAN Ports | 2 |
| Brand | Peplink |
| Model Number | MAX-HD2-MBX-5GH-T |
| Dimensions | 43 mm × 292 mm × 177 mm (1.7 in. × 11.5 in. × 7.0 in.) |
| Temperature | –40 °C to 65 °C (–40 °F to 149 °F) |
| Product Family | Peplink MAX HD1/HD2 |
| Product Type | Router |
| Device Form Factor | Router: Indoor |
| Cellular Technology | 5G with Fallback |
| 4G/LTE/3G Frequency Band | Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (AWS: 1700/2100 MHz), Band 5 (850 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 17 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 25 (1900 MHz), Band 26 (850 MHz), Band 28 (700 MHz), Band 29 (700 MHz), Band 30 (2300 MHz), Band 32 (1500 MHz), Band 34 (2000 MHz), Band 38 (2600 MHz), Band 39 (1900 MHz), Band 40 (2300 MHz), Band 41 (2500 MHz), Band 42 (3500 MHz), Band 46 (5200 MHz), Band 48 (3500 MHz), Band 66 (1700/2100 MHz), Band 71 (600 MHz) |
| Carrier | AT&T, T-Mobile, UScellular |
| Coverage Region | Global |
| Features | Redundant SIM Slots |
| Frequency | 5G: n1/2/3/5/28/41/66/71/77/78/794G LTE: 1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/46/48/66/71 |
| Power | 12 to 56 V DC |
| I/O Interface | 11× 10/100/1000M Ethernet (2× WAN, 8× LAN 802.3at PoE, 1× LAN/WAN Switchable), 1× 2×2 MIMO (Wi-Fi 5), 2× USB |
| RF Connector | 9× SMA (8× Cellular, 1× GPS), 4× RP-SMA (Wi-Fi) |
| Certifications | CE (EEA), E-Mark (EU), FCC (US), RoHS (EU), PTCRB (US & CA) |
| Carrier Approvals | AT&T, T-Mobile, US Cellular |
