Includes 4— mounting screws, 4— drywall anchors, 2— eye bolt with nuts
🔹 Carrier approved and unconditionally network safe
🔹 In-building cellular coverage solution for 4G and 5G with industry-leading signal gain up to 100 dB
🔹 Flexible to configure for single or dual operator server applications
🔹 Scalable all-digital active DAS hybrid for enterprise environments
🔹 Remotely monitor and configure with Nextivity WAVE Portal cloud management
🔹 Site installation flexibility with operator-specific donor antenna or small cell signal source
🔹 Lossless RF signal and Power-over-Ethernet (PoE) distribution with easy-to-install category cable architecture
$1,734.00
Solving cellular coverage challenges for enterprise environments, Cel-Fi QUATRA EVO is an active DAS hybrid that offers uniform, high-quality cellular signal throughout any building. QUATRA EVO utilizes category cabling for RF and Power-over-Ethernet (PoE) architecture to deliver industry-leading signal gain and scalability in an all-digital solution. In addition to unmatched performance, this cost-effective, carrier-grade system offers fiber expansion capabilities to scale up your coverage area and can be installed within days. QUATRA EVO is also carrier-approved and unconditionally network-safe.

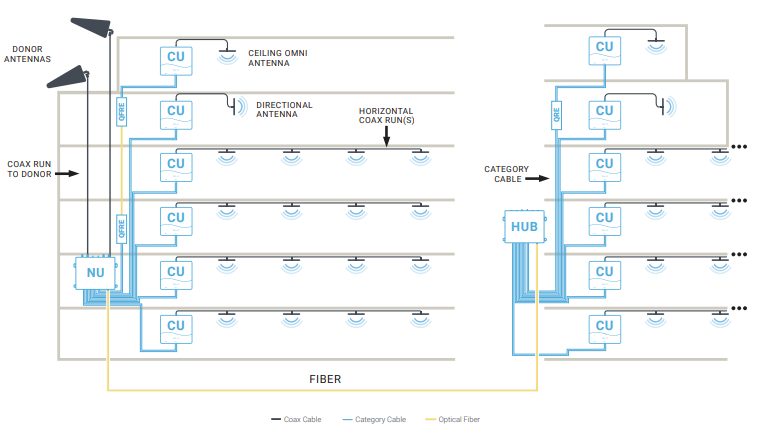

The Nextivity Q41‐BXCU is the coverage unit (CU) for the Cel-Fi QUATRA EVO. The CU is the remote unit of the system that rebroadcasts the donor signal. The cost-efficient and easy-to-deploy system leverages PoE, and up to six CUs can be attached to one NU, the Q42‐Z1CNU.
| Weight | 12.25 lbs |
|---|---|

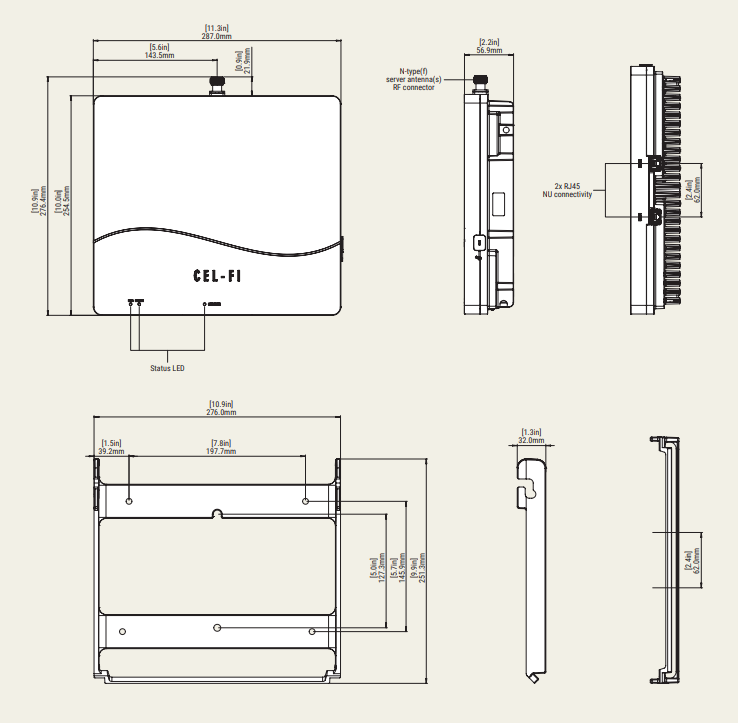

| Dimensions | 17.95 × 13.94 × 4.02 in |
| Temperature | Operating: 0 °C to 40 °C (32 °F to 104 °F); Storing: –35 °C to 70 °C (–31 °F to 158 °F) |
| Interface Connector | RJ-45, USB Type B |
| Brand | Nextivity |
| Model Number | Q41‐BXCU |
| Dimensions | 456 mm × 354 mm × 102 mm (17.95 in. × 13.94 in. × 4.02 in.) |
| Product Family | Nextivity Cel-Fi QUATRA |
| Product Type | Cell Signal Booster |
| Device Form Factor | Signal Booster |
| Cellular Technology | 5G with Fallback |
| 4G/LTE/3G Frequency Band | Band 2 (1900 MHz), Band 4 (AWS: 1700/2100 MHz), Band 5 (850 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 25 (1900 MHz) |
| Coverage Region | United States |
| Features | Carrier-Approved and Unconditionally Network-Safe |
| Frequency | 5G: n2/5/12/13/254G LTE: 2/4/5/12/13/25 |
| Power | 100 to 240 V |
| I/O Interface | 2× RJ-45, 1× Micro USB 2.0 |
| RF Connector | 1× N-Type Female |
| Certifications | FCC (US), ISED (CA), UL (Global) |
