Includes 1— AC power cable, 4— mounting screws, 4— drywall anchors, 1— cellular modem antenna
🔹 Carrier approved and unconditionally network safe
🔹 Multi-carrier signal booster for 4G and 5G with industry-leading signal gain up to 100 dB
🔹 Converged neutral host cellular and CBRS private networking coverage solution
🔹 Scalable all-digital active DAS hybrid for enterprise environments
🔹 Remotely monitor and configure with Nextivity WAVE Portal cloud management
🔹 Site installation flexibility with operator specific donor antenna or small cell signal source
🔹 Lossless RF signal and Power-over-Ethernet (PoE) distribution with easy-to-install category cable architecture
$7,998.00

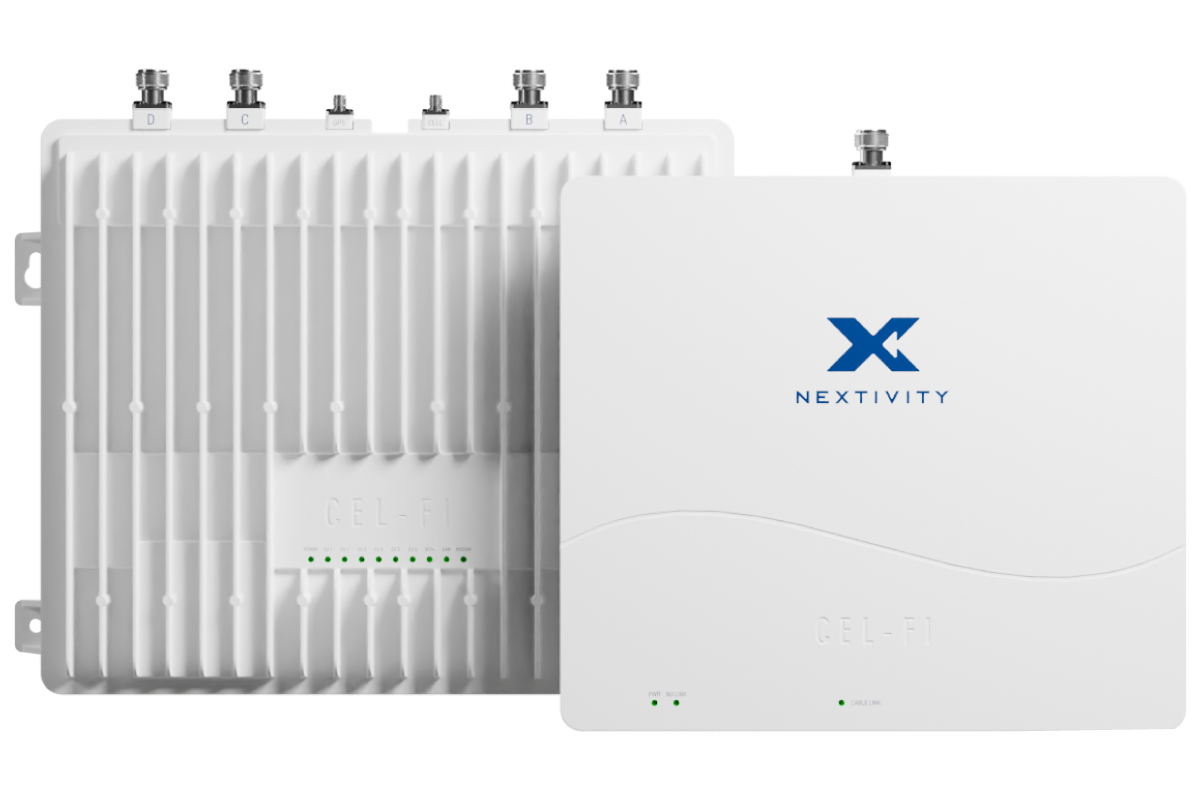

Cel-Fi QUATRA 4000c is the market’s first neutral host active DAS hybrid cellular coverage solution with the convergence of private networking. Combining the industry-leading cellular coverage Cel-Fi QUATRA systems are known for with CBRS private networking capabilities, QUATRA 4000c enables businesses to expand their wireless connectivity strategy by deploying a private network alongside reliable public cellular coverage inside their facility. In addition to intelligent, multi-carrier signal boosting, QUATRA 4000c pairs perfectly with the Nextivity HARMONY Private Networking service to extend private networking coverage throughout the building.

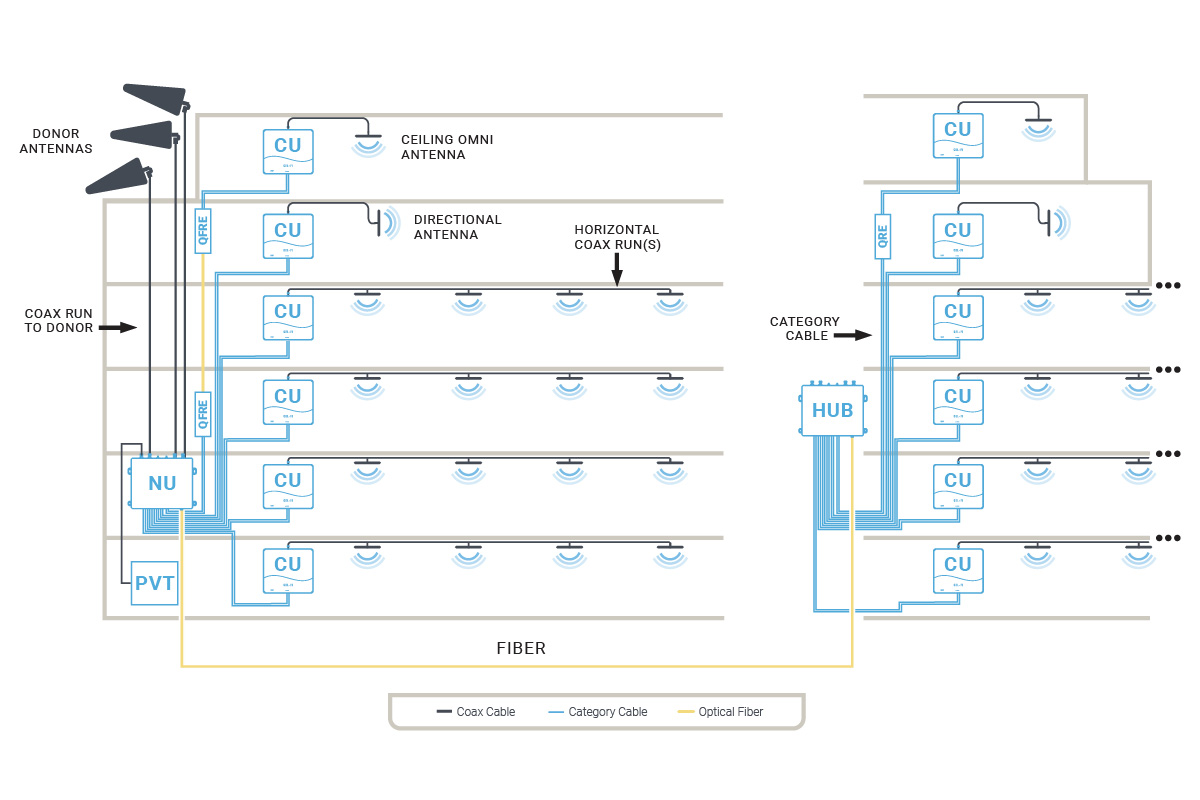

The Nextivity Q44-1M34CNU is the networking unit for the Cel-Fi QUATRA EVO. Designed for scalability, it integrates seamlessly with up to six coverage units (Q41‐RECU). Acting as the receiver for signals from the donor antenna, the NU amplifies and distributes them via ethernet to the coverage units. Moreover, it efficiently powers the coverage units through PoE technology. Public cellular bands 30 and 71 are available with industrial upgrade via WAVE Portal, and private networking band 48 is available with PVT port unlock.
| Weight | 18 lbs |
|---|---|
| Dimensions | 20.35 × 14.69 × 5.39 in |
| Temperature | Operating: 0 °C to 40 °C (32 °F to 104 °F); Storing: –35 °C to 70 °C (–31 °F to 158 °F) |
| Interface Connector | RJ-45, USB Type B |
| Model Number | Q44‐1M34CNU |
| Brand | Nextivity |
| Dimensions | 517 mm × 373 mm × 137 mm (20.35 in. × 14.69 in. × 5.39 in.) |
| Product Family | Nextivity Cel-Fi QUATRA |
| Product Type | Cell Signal Booster |
| Device Form Factor | Signal Booster |
| Cellular Technology | 5G with Fallback |
| 4G/LTE/3G Frequency Band | Band 2 (1900 MHz), Band 4 (AWS: 1700/2100 MHz), Band 5 (850 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 25 (1900 MHz) |
| Coverage Region | United States |
| Features | Carrier-Approved and Unconditionally Network-Safe |
| Frequency | 5G: n2/5/12/13/254G LTE: 2/4/5/12/13/25 |
| Power | 100 to 240 V |
| I/O Interface | 12× RJ-45, 1× SFP+, 1× Micro USB 2.0 |
| RF Connector | 4× N-Type Female, 2× SMA Female (1× Cellular, 1× GPS) |
| Certifications | FCC (US), ISED (CA), UL (Global) |
