Nextivity Cel-Fi QUATRA 4000 Fiber Range Extender | NU Side | Q40-0XNU

🔹 Extends NU to CU cable length up to 2 km
🔹 Versatility allows to be use on different QUATRA system architectures
🔹 Hybrid cable (FO + copper) compatible

$1,182.00

Description

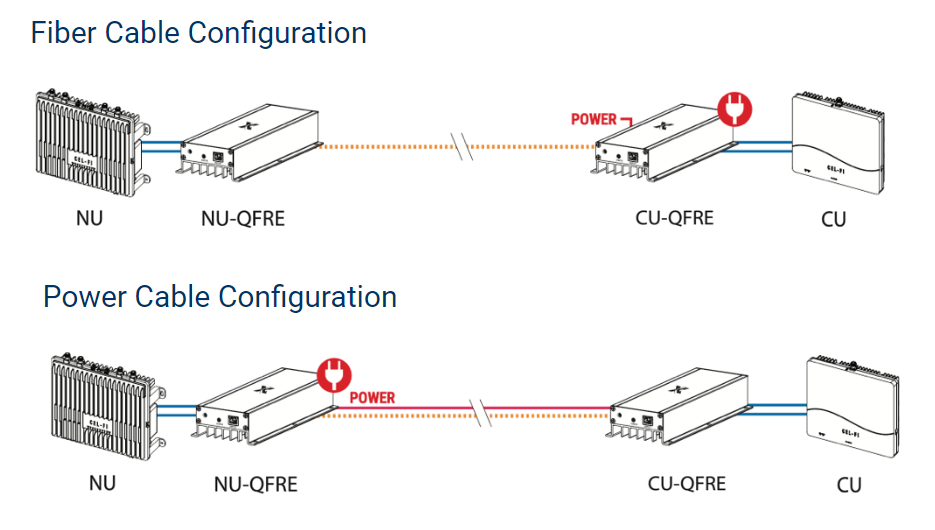

The QUATRA Fiber Range Extender (QFRE) increases the distance between the Network Unit and the Coverage Unit by up to two kilometers. It also allows for the use of copper cables to power up CUs remotely. It is compatible with QUATRA 1000, 2000, and 4000 products. Two QFREs are needed for each remote CU in the system (sold separately).The Q40-0XNU is a QFRE for the QUATRA 4000, NU side.

Additional information

Weight 18 lbs
Dimensions 9.45 × 4.35 × 1.94 in
Interface Connector

RJ-45

Model Number

Q40-0XNU

Brand

Nextivity

Dimensions

240 mm × 110.5 mm × 49.3 mm (9.45 in. × 4.35 in. × 1.94 in.)

Temperature

0 °C to 50 °C (32 °F to 122 °F)

Product Family

Nextivity Cel-Fi QUATRA

Product Type

Cell Signal Booster

Device Form Factor

Range Extender

Coverage Region

United States

Features

Extends NU-to-CU Cable Length up to 2 km

Power

44 to 55 V DC

I/O Interface

2× RJ-45

Certifications

CE (EEA), FCC (US), REACH (EU), RoHS (EU), UL (Global)
