CU side extender only—functions only with the FU side present (not included)

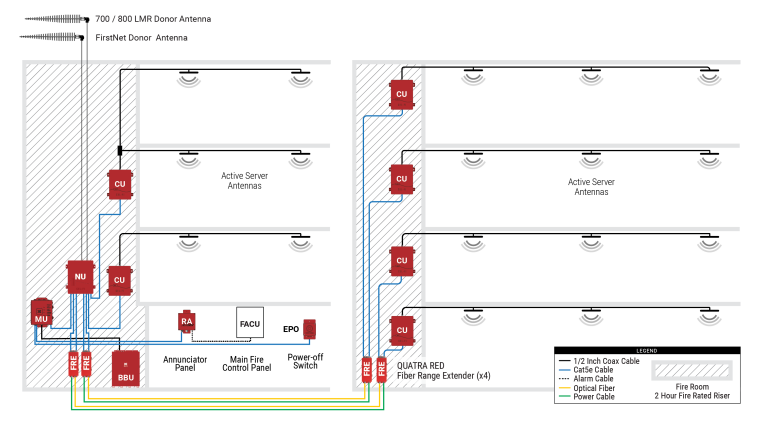

🌐 Fiber capabilities: The Cel-Fi SHIELD EXTEND Fiber Range Extenders (FRE) introduce fiber capabilities to Cel-Fi SHIELD EXTEND ERCES Integrated Public Safety DAS Installations, enhancing the system’s coverage reach.
🎯 Extended distance: These extenders significantly increase the distance between the Network Unit (NU) and Coverage Unit (CU) by up to 0.87 mi., providing extensive coverage in large-scale environments.
🏢 Flexibility in implementation: Well-suited for campuses, multi-building facilities, and high-rises, the FREs offer the flexibility to extend SHIELD EXTEND coverage in large structures effectively.
🔌 Hybrid cable compatibility: Supporting a hybrid cable configuration that combines fiber optic and copper cables, the FREs offer versatile installation options to meet your specific needs.
$1,404.00
The Cel-Fi SHIELD EXTEND Fiber Range Extenders (FRE) are ideal for enhancing the coverage of Cel-Fi SHIELD EXTEND ERCES public safety DAS systems in large-scale environments, including campuses, multi-building facilities, and high-rises.
| Weight | 10 lbs |
|---|---|
| Dimensions | 20 × 7.5 × 4 in |
| Chipset Maker | Cel-Fi |
| Interface Connector | RJ-45 |
| Brand | Nextivity |
| Model Number | F40-0XCU |
| Dimensions | 508 mm × 190.5 mm × 101.6 mm (20 in. × 7.5 in. × 4 in.) |
| Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Product Family | Nextivity Cel-Fi SHIELD |
| Product Type | Cell Signal Booster |
| Device Form Factor | Range Extender |
| Coverage Region | United States |
| Features | Extends NU-to-CU Cable Length up to 0.87 mi. |
| Power | 44 V DC |
| I/O Interface | 2× RJ-45, 1× SFP+ |
| Certifications | FCC (US), UL (Global) |
