🚀 High-speed Ethernet: Achieves up to 4.67 Gbps downlink speeds through wired connections.
🛡️ Industrial-grade durability: Designed with IP67 waterproof and UV-resistant housing for outdoor use.
🔄 Network failover support: Automatically switches between Ethernet and cellular networks for uninterrupted service.
🔋 Energy-efficient design: Operates with low power consumption, extending device life and reducing costs.
📍 Built-in GPS tracking: Integrated GPS provides accurate real-time location tracking for enhanced applications.
$1,014.00

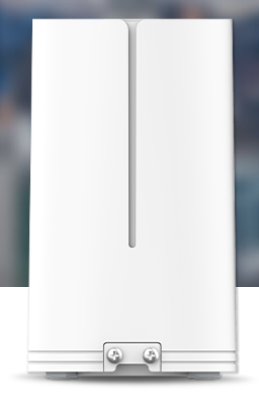

The UF51-504AE 5G CPE is an industrial-grade 5G customer-premises equipment for cost-effective, high-speed wireless networking applications. Powered by a quad-core ARM Cortex-A55 processor, this CPE provides reliable connectivity across global 5G, 4G LTE, and WCDMA networks. It offers up to 4.67 Gbps downlink speeds via its integrated Gigabit Ethernet ports, making it ideal for industrial automation, video surveillance, and smart office applications.
Encased in a rugged IP67-rated waterproof and UV-resistant enclosure, the UF51 ensures reliable outdoor performance even in extreme weather conditions. Multiple mounting options, serial ports, and digital I/O make this model perfect for M2M applications that demand robust, high-speed data transmission. The built-in GPS provides enhanced location tracking, and with failover support between Ethernet and 5G, this device guarantees seamless and secure connectivity.
Key features
| Weight | 1 lbs |
|---|---|
| Dimensions | 4.33 × 4.33 × 7.36 in |
| Brand | Milesight |
| Model Number | UF51-504AE |
| Dimensions | 110 mm × 110 mm × 187 mm (4.33 in. × 4.33 in. × 7.36 in.) |
| Temperature | Operating: –30 °C to 60 °C (–22 °F to 140 °F); Storing: –40 °C to 85 °C (–40 °F to 185 °F) |
| Product Family | Milesight UF51 |
| Product Type | CPE |
| Cellular Technology | 5G with Fallback |
| 4G/LTE/3G Frequency Band | Band 1 (2100 MHz), Band 3 (1800 MHz), Band 5 (850 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 20 (800 MHz), Band 28 (700 MHz), Band 32 (1500 MHz), Band 38 (2600 MHz), Band 40 (2300 MHz), Band 41 (2500 MHz), Band 42 (3500 MHz), Band 43 (3700 MHz) |
| 5G Frequency Band | Band N1 (2100 MHz), Band N3 (1800 MHz), Band N5 (850 MHz), Band N7 (2600 MHz), Band N8 (900 MHz), Band N20 (800 MHz), Band N28 (700 MHz), Band N38 (2600 MHz), Band N40 (2300 MHz), Band N41 (2500 MHz), Band N77 (3700 MHz), Band N78 (3500 MHz) |
| Coverage Region | Global |
| Features | 8× Embedded 5G Antennas |
| Frequency | 5G: n1/3/5/7/8/20/28/38/40/41/77/78; 4G LTE: 1/3/5/7/8/20/28/32/38/40/41/42/43; 3G: 1/5/8 |
| Power | 9 to 48 V DC, 802.3at PoE |
| LAN Ports | 1 |
| WAN Ports | 1 |
| I/O Interface | 1× 10/100/1000M (LAN), 1× 10/100/1000/2500M (LAN/WAN), 1× Micro SIM, 1× RS485, 1× USB 3.0 |
| Certifications | CE (EEA), RoHS (EU) |
| Interface Connector | 2× RJ-45, 1× Micro SIM, 1× RS485, 1× USB 3.0 |
