🔐 Industrial-Grade Security & Remote Management: Designed for secure communication in critical IoT systems. Features built-in firewall protection and remote management via MultiTech Device Manager for scalable deployment and monitoring.

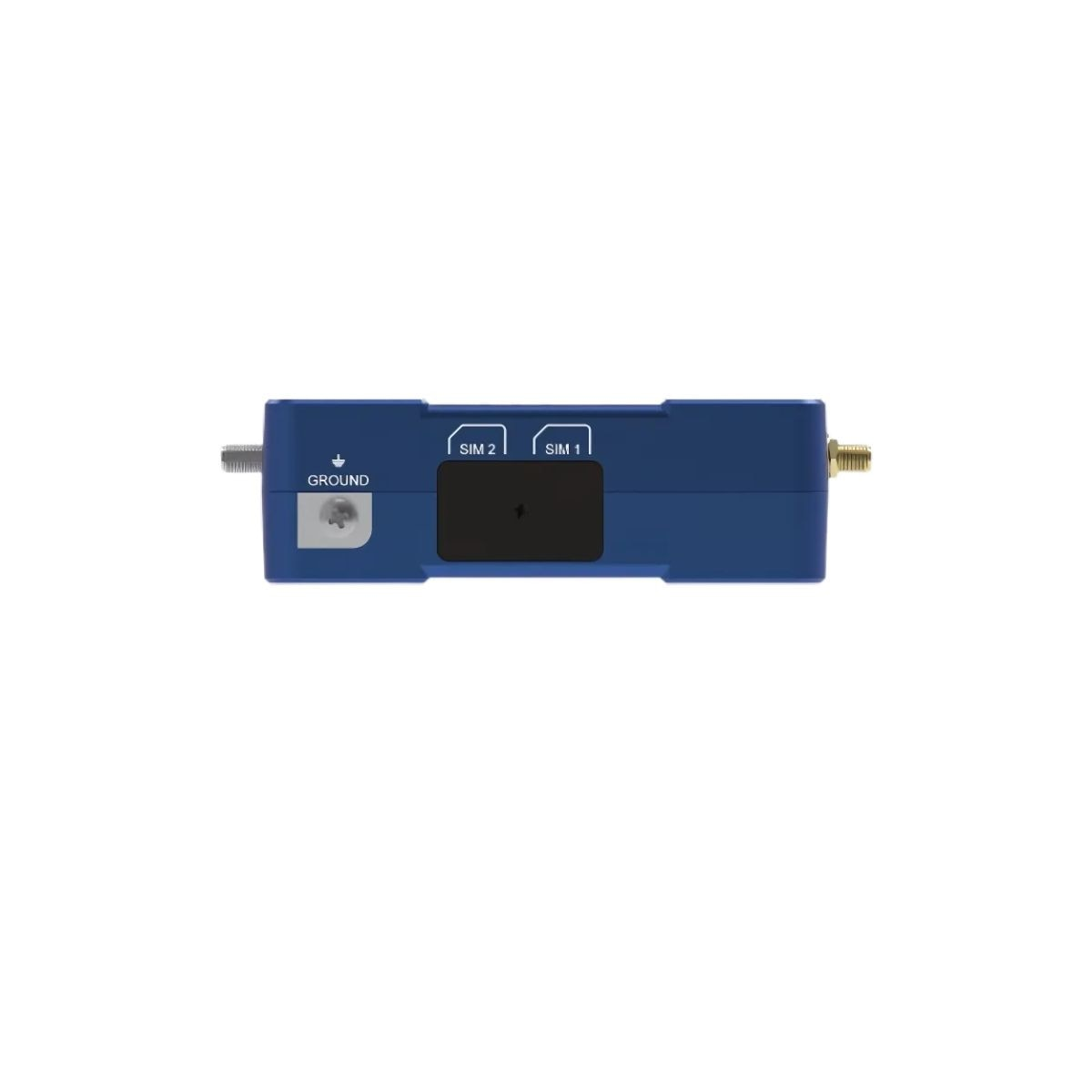

📶 LTE Cat 4 with Global Multi-Band Support: Supports up to 150 Mbps downlink and 50 Mbps uplink across major LTE/3G/2G bands, including fallback. Dual SIM slots ensure network redundancy and uptime.
🌐 Wi-Fi & GPS Built In: AC00PA models include 802.11a/b/g/n/ac/ax (2.4 & 5 GHz) Wi-Fi and GPS/QZSS/SBAS/GLONASS location tracking — perfect for mobility applications, smart city devices, and remote assets.

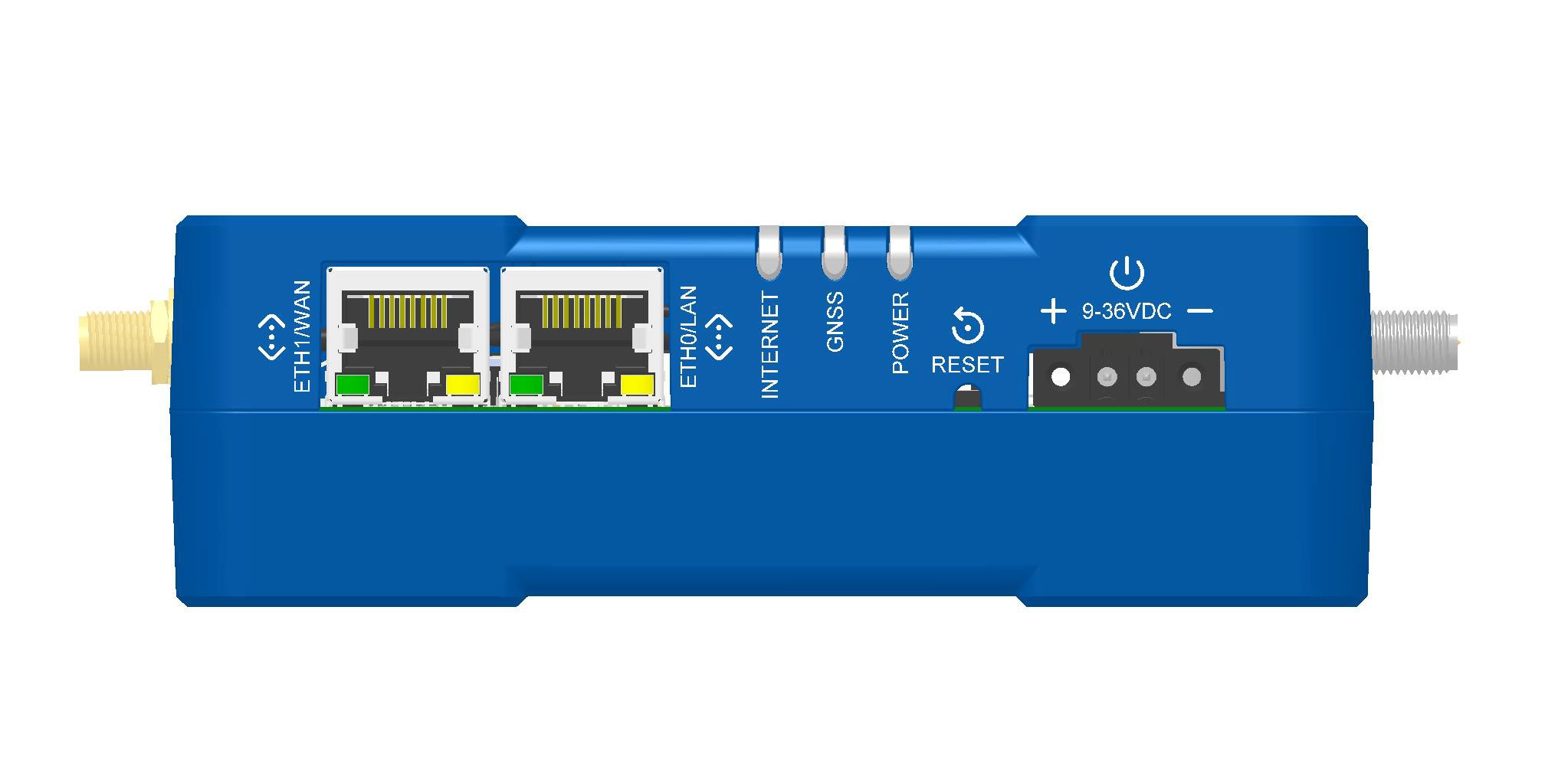

🛠️ Versatile I/O & Mounting: Equipped with dual Ethernet ports, RS232/RS485 serial interfaces, and GPIO. DIN rail, wall, and desktop mounting options make it adaptable for any deployment environment.
❄️ Rugged for Extreme Environments: Housed in an IP30-rated aluminum chassis, rated for -40 °C to +75 °C operation. Certified to MIL-STD-810G and SAE J1455 for shock, vibration, and thermal extremes.
$439.00

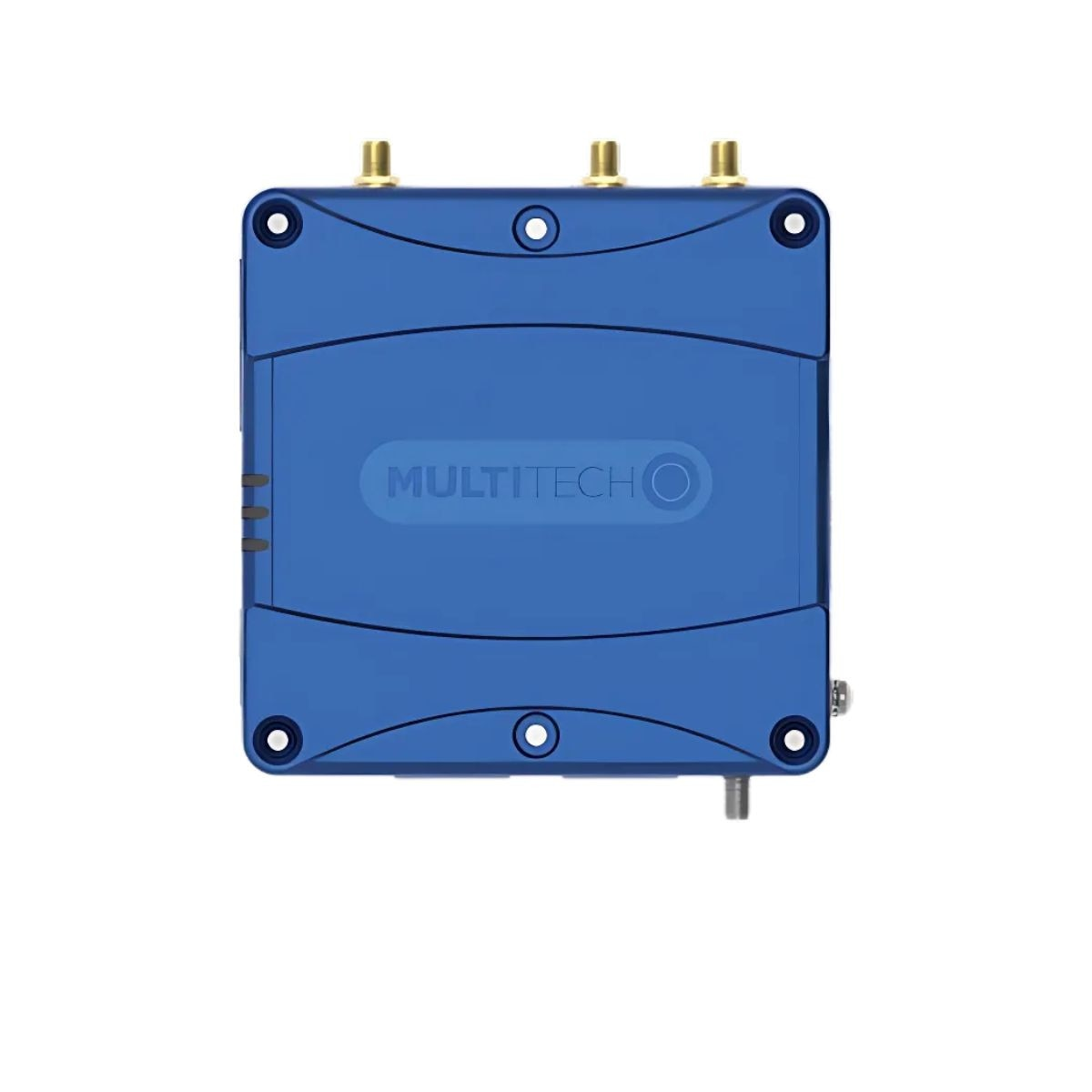

The MultiTech rCell 300 Series MTR3-L4G2D-AC00PA-11M is a robust industrial cellular router designed for secure, reliable communication in demanding IoT environments. Featuring LTE Cat 4 connectivity with 3G/2G fallback, it supports high-speed data transfer for remote monitoring, industrial automation, and smart city infrastructure. This model includes dual SIM slots, Wi-Fi (802.11a/b/g/n/ac/ax), GPS support, and dual Ethernet ports, enabling flexible deployment across global applications.
Built with a rugged IP30-rated aluminum chassis and certified to military-grade standards (MIL-STD-810G, SAE J1455), the rCell 300 operates in extreme temperatures ranging from -40 °C to +75 °C. Its advanced edge intelligence, serial and GPIO interfaces, and compatibility with MultiTech Device Manager make it ideal for managing field equipment, remote assets, and real-time data collection across industries such as utilities, agriculture, oil & gas, and transportation.
| Weight | 2 lbs |
|---|---|
| Dimensions | 4.61 × 4.61 × 1.5 in |
| Included Items | 1× 2-wire Terminal Block (power), 1x 8-wire terminal block (serial, GPIO) |
| Brand | MultiTech |
| Model Number | MTR3-L4G2D-AC00PA-11M |
| Dimensions | 117 mm × 117 mm × 38 mm (4.61 in. × 4.61 in. × 1.5 in.) |
| Temperature | Operating: –40 °C to 75 °C (–40 °F to 167 °F); Storing: –40 °C to 85 °C (–40 °F to 185 °F) |
| Product Family | MultiConnect® rCell 300 |
| Product Type | Router |
| Device Form Factor | Router: Indoor with Wi-Fi |
| Cellular Technology | 4G LTE Cat 4 with Fallback |
| 4G/LTE/3G Frequency Band | Band 1 (2100 MHz), Band 2 (1900 MHz), Band 4 (AWS: 1700/2100 MHz), Band 5 (850 MHz), Band 8 (900 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 19 (850 MHz), Band 25 (1900 MHz) |
| Wireless Standard | 802.11ax (Wi-Fi 6) |
| Carrier Approvals | AT&T, Verizon |
| Coverage Region | Global |
| Features | Embedded GNSS |
| Frequency | 4G LTE: 2/4/8/12/13/14/25; 3G: 1/2/4/5/6/8/19 |
| Power | 9 to 36 V DC |
| LAN Ports | 1 |
| WAN Ports | 1 |
| I/O Interface | 2× 10/100 Ethernet, 1× Digital Input, 1× Digital Output, 2× Micro SIM (3FF) |
| Certifications | CE (EEA), FCC (US), IC (CA), UKCA (UK), UL (Global), PTCRB (US & CA), RCM/A-Tick/C-Tick (AU & NZ) |
| Interface Connector | RJ-45 ×2 (10/100 Mbps) |
