🌐 Ultra-Fast 5G Performance: Achieve blazing speeds with 5G Sub-6GHz (up to 3.4 Gbps DL) and LTE Cat 19 fallback, ensuring reliable connectivity in SA/NSA modes with 4×4 MIMO support.
📶 Flexible Multi-WAN & Dual SIM Failover: Stay online with 2 SIM slots and auto-switch capabilities for weak signal, data limit, or roaming; supports Ethernet, mobile, and Wi-Fi WAN with load balancing and VRRP for seamless failover.
🔒 Comprehensive Security Suite: Protect your network with firewall, VLAN separation, DoS prevention, web filtering, and enterprise authentication (RADIUS, TACACS+, 802.1X), plus support for 10+ VPN types including WireGuard, IPsec, and ZeroTier.
📡 Robust Wireless & GNSS Features: Dual-band Wi-Fi 5 with MU-MIMO supports up to 150 simultaneous users, mesh networking, fast roaming, and integrated GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS) with geofencing and NTRIP for precision tracking.
⚙️ Industrial-Grade Design & Management: Rugged anodized aluminum housing, wide operating temperature (-40 °C to 75 °C), RMS remote management, multiple IoT platform integrations (AWS, Azure, ThingWorx), and SDK for custom firmware development.
$699.00
The Teltonika RUTM54 is a high-performance industrial 5G router designed for mission-critical connectivity in demanding environments. Supporting 5G Sub-6GHz with speeds up to 3.4 Gbps and LTE Cat 19 fallback, it ensures ultra-fast, reliable internet access for enterprises, transportation, and IoT applications. Dual SIM capability with automatic failover, multi-WAN options, and load balancing provide uninterrupted connectivity, while integrated GNSS with geofencing and NTRIP support enables precise location tracking.
Equipped with dual-band Wi-Fi 5 (MU-MIMO) supporting up to 150 concurrent users, the RUTM54 delivers robust wireless coverage alongside advanced wired networking with 5 Gigabit Ethernet ports. Security is enterprise-grade, featuring firewall, VLAN separation, DoS prevention, and support for over 10 VPN protocols, including WireGuard, IPsec, and ZeroTier.
Built with an anodized aluminum housing and operating in extreme temperatures from -40 °C to 75 °C, the RUTM54 is engineered for industrial resilience. It integrates seamlessly with major IoT platforms like AWS, Azure, and ThingWorx, and can be managed via Teltonika’s Remote Management System (RMS) for streamlined deployments and remote maintenance.
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 5.2 × 1.74 × 3.74 in |
| Included Items | 1× Power Supply, 4× Cellular Antennas, 2× Wi-Fi Antenna, 1× GNSS Antenna, 1× Ethernet Cable, 1x SIM Adapter Kit |
| Brand | Teltonika |
| Model Number | RUTM54 |
| Dimensions | 132 mm × 44.2 mm × 95 mm (5.2 in. × 1.74 in. × 3.74 in.) |
| Temperature | –40 °C to 75 °C (–40 °F to 167 °F) |
| Product Family | Teltonika RUT |
| Product Type | Router |
| Device Form Factor | Router: Outdoor/Rugged |
| Cellular Technology | 5G with Fallback |
| 4G/LTE/3G Frequency Band | Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (AWS: 1700/2100 MHz), Band 5 (850 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 17 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 25 (1900 MHz), Band 26 (850 MHz), Band 28 (700 MHz), Band 29 (700 MHz), Band 30 (2300 MHz), Band 32 (1500 MHz), Band 34 (2000 MHz), Band 38 (2600 MHz), Band 39 (1900 MHz), Band 40 (2300 MHz), Band 41 (2500 MHz), Band 42 (3500 MHz), Band 43 (3700 MHz), Band 46 (5200 MHz) |
| 5G Frequency Band | Band N1 (2100 MHz), Band N2 (1900 MHz), Band N3 (1800 MHz), Band N5 (850 MHz), Band N7 (2600 MHz), Band N8 (900 MHz), Band N20 (800 MHz), Band N25 (1900 MHz), Band N28 (700 MHz), Band N30 (2300 MHz), Band N38 (2600 MHz), Band N40 (2300 MHz), Band N41 (2500 MHz), Band N48 (3500 MHz), Band N66 (1700/2100 MHz), Band N71 (600 MHz), Band N77 (3700 MHz), Band N78 (3500 MHz), Band N79 (4700 MHz) |
| Carrier | AT&T, T-Mobile |
| Wireless Standard | 802.11ac/abgn |
| Carrier Approvals | AT&T, T-Mobile |
| Coverage Region | North America |
| Features | FOTA Updates |
| Frequency | 5G: n1/2/3/5/7/8/20/25/28/30/38/40/41/48/66/71/77/78/79; 4G LTE: 1/2/3/4/5/7/8/12/17/13/14/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/46/48/66/71; 3G: 1/2/4/5/6/8/19 |
| Power | 9 to 50 V DC |

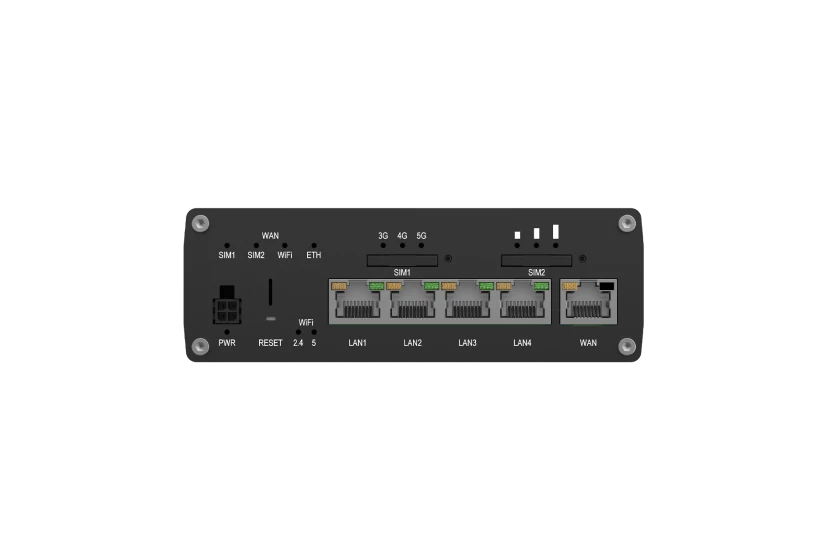

| I/O Interface | 5× 10/100 Ethernet, 1× Digital Input, 1× Digital Output, 1× USB A, , 2× SIM slot (Mini SIM – 2FF) |

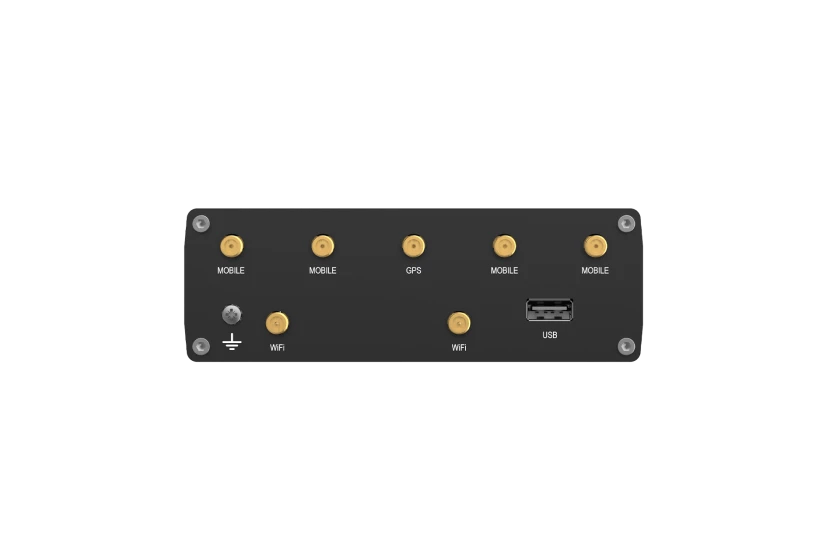

| RF Connector | 4× SMA (Cellular), 2× RP-SMA (Wi-Fi), 1× SMA (GNSS) |
| Certifications | CE (EEA), E-Mark (EU), FCC (US), IC (CA), REACH (EU), RoHS (EU), UKCA (UK), WEEE (EU), PTCRB (US & CA) |
| Interface Connector | RJ-45 ×5 (10/100 Mbps) |
