⚡ Ultra-Low Power: Ideal for solar- or battery-powered applications with ultra-low power consumption.
🌎 Global LTE Connectivity: Supports extensive LTE bands worldwide with Cat-12 or Cat-4 capabilities, offering up to 600 Mbps downlink.
🌡 Rugged Environmental Design: Engineered for harsh environments with an operating temperature of -30°C to +70°C (Wi-Fi variant) and IP64 rated ingress protection.
📶 Dual Wi-Fi 5: Features Dual 1×1 Wi-Fi 5 (802.11 b/g/n/ac) supporting up to 10 clients.
📝 AirLink Complete Included: Includes 1st year of AirLink Management Service (ALMS) and 24/7 technical support.
$1,049.00

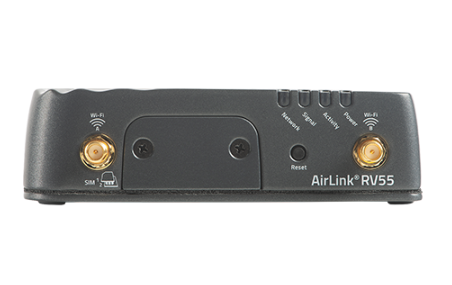

The Semtech AirLink RV55 + WiFi is a rugged, advanced cellular router engineered for challenging industrial and mobile installations, demanding superior reliability and uninterrupted operation. This compact and robust device is specifically designed to withstand harsh environments, meeting stringent standards such as MIL-STD-810G and IP64 for physical resilience, and operating reliably across a wide temperature range from -30°C to +65°C, or -40°C to +70°C for some models, making it ideal for outdoor or vehicle-based applications. The specific model referenced, with MPN 1105186, includes optional dual-band 2.4 and 5 GHz WiFi (IEEE 802.11ac Wave2 Client Mode), allowing it to function as an Access Point or Client (Wi-Fi as WAN) supporting up to 10 clients with WPA2 Enterprise security. Its advanced connectivity features include LTE-A Pro Cat 12 speed, offering impressive data rates up to 600 Mbps download and 150 Mbps upload. This high-speed capability ensures reliable primary or backup connectivity, crucial for mission-critical applications. Furthermore, the RV55 LTE-A Pro models are often certified as FirstNet Ready™ (Band 14), signifying their suitability for public safety communication networks.
Connectivity options on the RV55 are comprehensive, ensuring integration into various setups. It features a 1 Gigabit RJ-45 Ethernet Port for high-speed local network connections, and an RS-232 Serial Port (DB-9 connector) for legacy equipment integration. The router also includes a dedicated GNSS receiver, supporting multiple global positioning systems including GPS, GLONASS, BeiDou, and Galileo, providing highly accurate location tracking with sensitivity down to -162 dBm. This GPS functionality is essential for asset tracking and telematics applications. Additionally, it offers 5 configurable GPIO pins for digital and analog channels, enhancing its utility for monitoring and controlling external devices. The device is powered by a 7 to 36 VDC input via a 4-pin block connector, which incorporates a low-voltage disconnect feature to prevent battery drain and includes Ignition Sense functionality with a time delay shutdown, optimized for vehicle use.
Certified across all North American carriers and compliant with numerous global regulatory and safety standards, including FCC, IC, CE, REACH, WEEE, and UL 60950, the Semtech AirLink RV55 is built for global deployment and peace of mind. Its robust feature set and compact dimensions (146 x 100 x 42 mm) make it an efficient and powerful solution for industrial IoT, fleet management, and remote site connectivity. The router leverages the AirLink Management Service (ALMS) for comprehensive remote management and monitoring, streamlining device maintenance and operational visibility across large deployments. With its high-performance Cat 12 modem, rugged design, optional Wi-Fi capability, and advanced GPS features, the AirLink RV55 stands as a leading choice for demanding cellular routing requirements in harsh operating environments.
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 4691343.35 in |
| Included Items | RV55, DC Power Cable, and Quick Start Guide, 1 year of AirLink Complete, 1-year standard warranty |
| Brand | Sierra Wireless |
| Model Number | 1105186 |
| Dimensions | 119 mm × 33 mm × 85 mm (4.69 in × 1.34 in × 3.35 in) |
| Temperature | Operating: –30 °C to 70 °C (–22 °F to 158 °F); Storage: –40 °C to 85 °C (–40 °F to 185 °F) |
| Product Family | Semtech RV |
| Product Type | Router |
| Device Form Factor | Router: Indoor with Wi-Fi, Router: Outdoor/Rugged |
| Cellular Technology | 4G LTE Cat 12 with Fallback |
| 4G/LTE/3G Frequency Band | Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (AWS: 1700/2100 MHz), Band 5 (850 MHz), Band 6 (800 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 9 (1700/1800 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 26 (850 MHz), Band 29 (700 MHz), Band 30 (2300 MHz), Band 32 (1500 MHz), Band 41 (2500 MHz), Band 42 (3500 MHz), Band 43 (3700 MHz), Band 46 (5200 MHz), Band 48 (3500 MHz), Band 66 (1700/2100 MHz) |
| Carrier | AT&T, Bell, FirstNet, Rogers, Southern Linc, T-Mobile, Telstra, Telus, UScellular, Verizon |
| Wireless Standard | 802.11ac/abgn |
| Carrier Approvals | AT&T, T-Mobile, Verizon |
| Coverage Region | North America |
| Tracker Type | Battery-Powered, Solar-Powered |
| Features | LTE-A Pro Cat 12 speed, 1 Gigabit RJ-45 Ethernet Port, Optional dual-band 2.4 and 5 GHz WiFi (IEEE 802.11ac), Dedicated GNSS receiver supports GPS and GLONASS, RS-232 Serial Port (DB-9), Ultra-Low Power Industrial 4G LTE Router, Rugged cellular router, IP64 rated ingress protection, MIL-STD-810G conformance, Class 1 Div 2 |
| Frequency | 4G LTE: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B18/B19/B20/B26/B29/B30/B32/B41/B42/B43/B46/B48/B66;3G HSPA/HSPA+: B1/B2/B4/B5/B6/B8/B9/B19 |
| Power | Input Voltage: 7 to 36 VDC, Idle Power: < 1 W, LTE Idle Power: 900 mW (75 mA @ 12 VDC), Standby Mode Power: 53 mW (4.4 mA @ 12 VDC), Optional WiFi Output Power: 16 dBm per channel |
| LAN Ports | 1 |
| I/O Interface | 1x Ethernet (1 Gbps), Dual 1×1 Wi-Fi 5, RS-232 Serial Port (DB-9), USB 2.0 Micro-B Connector, 5 configurable GPIO pins |
| RF Connector | SMA, RP-SMA |
| Certifications | E-Mark (EU), REACH (EU), RoHS (EU), UL (Global), WEEE (EU) |
| Interface Connector | USB 2.0 Micro-B Connector, SMA, RP-SMA, 1 Gigabit RJ-45, RS-232 (DB-9 connector), 4-pin block connector |
