🌐 Future-proof Connectivity: Native 5G NSA and SA mode support with an extensive list of compatible 5G/LTE bands to keep your network running for years.
🔞 Reliable & Rugged Design: An exceptionally reliable, rugged 5G Cellular Router built in a metal case with a fanless, ventless design certified for shock and vibration resistance.
📶 High Throughput: Connects Ethernet devices with up to 300Mbps throughput, utilizing the latest cellular LTE and 5G via SIM or eSIM.
📝 Remote Management: Central management via Peplink InControl2 and local device management via Peplink InTouch saves time and reduces field visits.
🌍 Global Deployments: A single SKU (MAX-BR1-MINI-5GN-T-PRM) designed for global deployments, including US Carrier Certifications (AT&T, T-Mobile, Verizon, FirstNet).
$1,000.00

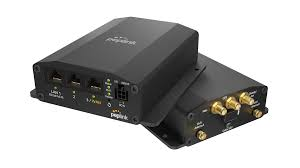

The Peplink MAX BR1 Mini (MAX-BR1-MINI-5GN-T-PRM) is engineered as an exceptionally reliable, rugged 5G Cellular Router, designed to connect data and Internet applications in virtually any environment. This device future-proofs your network with the latest 5G (NSA & SA) and LTE technologies, supporting a single SKU for global deployments and an extensive list of compatible bands (including 5G Sub 6Ghz bands like n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79). It comes equipped with a 1x 5G Embedded Modem and redundant SIM slots, supporting Nano-SIM (4FF), Peplink eSIM, BYO eSIM (2 profiles), Remote SIM from SIM Injector, and FusionSIM, offering maximum flexibility in connectivity. The router features a throughput of up to 300 Mbps and robust cellular data rates of up to 3.4 Gbps downlink and 900 Mbps uplink (5G), or 1.6 Gbps downlink and 200 Mbps uplink (CAT-20). The hardware is built within a rugged metal case with a fanless, ventless design, certified for shock and vibration resistance, ensuring deployment reliability even in harsh conditions. It supports a power input range of 10V – 30V DC via the Power Port, or via AC Adapter (100V–240V AC / 12V DC Output), and can also be powered by Power over Ethernet (802.3at). Power consumption is nominal 13W and max 18W. Its compact dimensions are 5.0 x 4.2 x 1.4 inches (125.7 x 107 x 35 mm), and it weighs 0.94 pounds (425 grams), operating within a wide temperature range of -40°C to 65°C (-40°F to 149°F).
Connectivity features include a 1x 10/100/1000M Ethernet WAN/LAN port and up to 3x 10/100/1000M Ethernet LAN ports, alongside simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 5 with 2X2 MIMO. The device supports various WAN technologies, including Ethernet WAN, Wi-Fi WAN, and the embedded cellular modem, providing multiple redundant options to ensure connection stability and up to 300Mbps throughput to connected Ethernet devices. The BR1 Mini is also designed for remote operation and management via Peplink’s InControl 2, a cloud-based endpoint management system, and Peplink InTouch for local device management and access to connected devices like sensors and cameras. Security is maintained through a Stateful Firewall and DoS Prevention, while advanced networking features include support for PPPoE, Static IP, DHCP, VLAN, and various QoS controls. It comes with a 1-Year Limited Warranty and is certified by bodies like the FCC, CE, RoHS, and includes specialized certifications such as EN 45545-2 for Railway applications – Fire protection, and US Carrier Certifications (AT&T, T-Mobile, Verizon, FirstNet).
The MAX-BR1-MINI-5GN-T-PRM (With Wi-Fi) package content typically includes 1x BR1 Mini 5G (HW2), 4x LTE/5G Antennas (ACW-235), 2x Dual Band Wi-Fi Antennas (ACW-342), and 1x 12V 2A 4pin Power Supply (ACW-632). It is highly optimized for Peplink’s SpeedFusion technologies, which may be enabled via a PrimeCare subscription or an optional feature pack (MAX-BR1-MINI-LC-FP). Key SpeedFusion features include Hot Failover, Smoothing, and Bandwidth Bonding, which significantly enhance connectivity reliability and performance for mission-critical applications. This router is recommended for 1-60 users and serves as an ideal solution for mass deployments requiring affordable, high-speed 5G connectivity with industrial-grade resilience and comprehensive management capabilities.
| Weight | 1 lbs |
|---|---|
| Dimensions | 4.1 × 4.3 × 1.2 in |
| Tariff COO | United States |
| Included Items | 1x BR1 Mini 5G (HW2), 4x LTE/5G Antennas (ACW-235), 2x Dual Band Wi-Fi Antennas (ACW-342), 1x 12V 2A 4pin Power Supply (ACW-632) |
| Brand | Peplink |
| Model Number | MAX-BR1-MINI-5GN-T-PRM |
| Dimensions | 105 mm × 110 mm × 30 mm (4.1 in. × 4.3 in. × 1.2 in.) |
| Temperature | Operating: –40 °C to 65 °C (–40 °F to 149 °F) |
| Product Family | Peplink MAX BR1 |
| Product Type | Router |
| Device Form Factor | Router: Indoor with Wi-Fi |
| Cellular Technology | 5G with Fallback |
| 4G/LTE/3G Frequency Band | Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (AWS: 1700/2100 MHz), Band 5 (850 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 17 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 25 (1900 MHz), Band 26 (850 MHz), Band 28 (700 MHz), Band 29 (700 MHz), Band 30 (2300 MHz), Band 32 (1500 MHz), Band 34 (2000 MHz), Band 38 (2600 MHz), Band 39 (1900 MHz), Band 40 (2300 MHz), Band 41 (2500 MHz), Band 42 (3500 MHz), Band 43 (3700 MHz), Band 46 (5200 MHz), Band 48 (3500 MHz), Band 66 (1700/2100 MHz), Band 71 (600 MHz) |
| 5G Frequency Band | Band N29 (700 MHz), Band N70 (2000 MHz), Band N1 (2100 MHz), Band N2 (1900 MHz), Band N3 (1800 MHz), Band N5 (850 MHz), Band N7 (2600 MHz), Band N8 (900 MHz), Band N12 (700 MHz), Band N13 (700 MHz), Band N14 (700 MHz), Band N18 (700 MHz), Band N20 (800 MHz), Band N25 (1900 MHz), Band N26 (850 MHz), Band N28 (700 MHz), Band N30 (2300 MHz), Band N38 (2600 MHz), Band N40 (2300 MHz), Band N41 (2500 MHz), Band N48 (3500 MHz), Band N66 (1700/2100 MHz), Band N71 (600 MHz), Band N75 (1500 MHz), Band N76 (1500 MHz), Band N77 (3700 MHz), Band N78 (3500 MHz), Band N79 (4700 MHz) |
| Carrier | AT&T, FirstNet, Global, T-Mobile, Verizon |
| Wireless Standard | 802.11ax (Wi-Fi 6) |
| Carrier Approvals | AT&T, FirstNet, T-Mobile, Verizon |
| Coverage Region | Global |
| Features | Future-proof Connectivity, Ruggedized and Reliable, Designed for Remote Operation, Native 5G NSA and SA mode support, Extensive list of compatible 5G/LTE bands, Private 5G Support, Utilize Wi-Fi WAN for Added Reliability, Remote Access to Third Party Device Interface (InTouch), Seamless Connection Transfer Without Interruption (Hot Failover), Improve your Video and Collaboration (Smoothing), SpeedFusion Connect services |
| Frequency | 5G: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79;4G LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71 |
| Chipset | Qualcomm SDX55 |
| Power | Power Port: 10V – 30V DC AC Adapter: AC Input 100V–240V / DC Output 12V Power over Ethernet 802.3at, Power Consumption: 11W (nominal), 13W (max.) |
| LAN Ports | 2 |
| WAN Ports | 1 |
| I/O Interface | 1x 10/100/1000M Ethernet WAN, 2x 10/100/1000M Ethernet LAN, 1x Embedded Cellular Modem with Redundant SIM Slots, Power Port with GPIO & Ignition Sensing |
| RF Connector | 4x SMA Cellular Antenna Connectors, 2x RP-SMA Wi-Fi Antenna Connectors |
| Interface Connector | 4x SMA Cellular Antenna Connectors, 2x RP-SMA Wi-Fi Antenna Connectors, 1x 10/100/1000M Ethernet, Power Port |
