☔ IP67 rated. Compatible with DC open antennas
📡 Donor antenna monitoring: The CEL-FI Donor Antenna Sensor provides essential monitoring of donor antennas, aligning with NFPA and IFC codes, ensuring safety compliance.
🔌 Compatibility: Designed to work with the QUATRA RED Network Unit, it’s compatible with any antenna that presents as a DC open.
🔹 Versatility: In cases where the antenna is shorted at DC, the sensor accommodates a DC block insertion between the antenna and itself.
$105.95

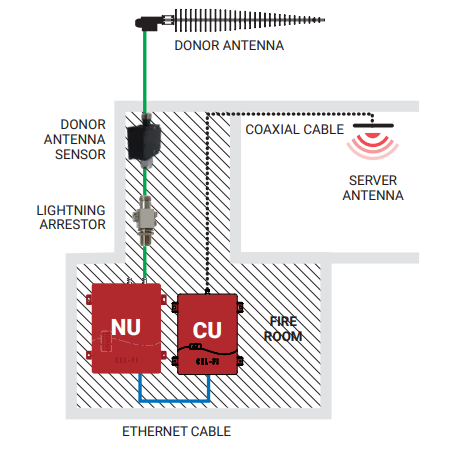

The CEL-FI Donor Antenna Sensor enables donor antenna monitoring required by NFPA and IFC codes to any antenna used with the QUATRA RED Network Unit. Please note that the Donor Antenna Sensor will work with any antenna that presents as a DC open. If the antenna is shorted at DC, a DC block must be inserted between the antenna and sensor.
| Weight | 1 lbs |
|---|---|
| Dimensions | 1.77 × 2.15 × 1.06 in |
| Brand | Nextivity |
| Model Number | C21-200-100 |
| Dimensions | 45 mm × 54.5 mm × 27 mm (1.77 in. × 2.15 in. × 1.06 in.) |
| Accessory Type | Misc Accessory |
| Product Family | Nextivity Accessories |
| Accessory Connector | N-Type |
| Cable Connector 1 | N-Type Male |
| Cable Connector 2 | N-Type Female |
| Connector Type | N-Type Male to N-Type Female |
| Nominal Impedance | 50 Ω |
| Frequency | 0.45 ~ 2.7 GHz |
| Insertion Loss | ≤0.5 dB |
| VSWR | ≤1.3:1 |
