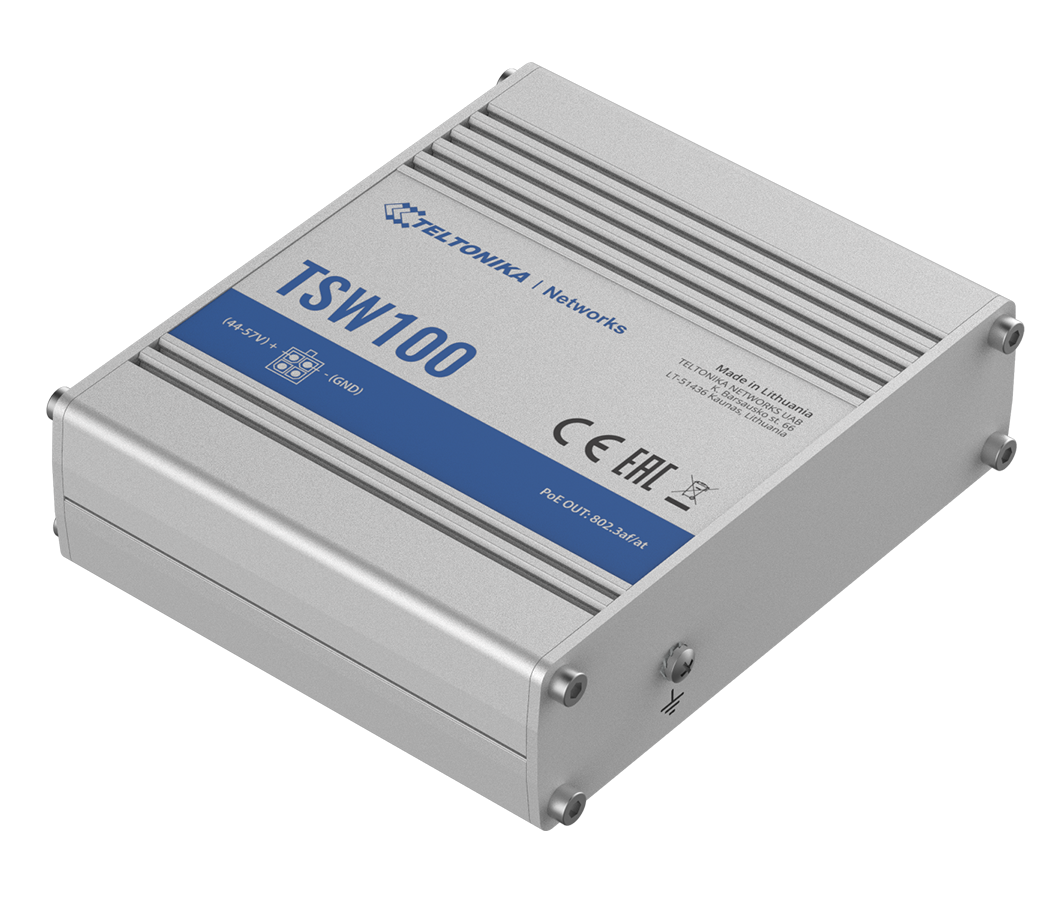

TSW100 is an unmanaged Gigabit Ethernet switch with PoE. As power source equipment (PSE), it centralizes the power supply, providing up to 30w/port, reducing installation effort. Five ports support a low-cost, high-bandwidth, secure industrial network.
🔹 POE+: 4× PoE+ ports with 802.3af and 802.3at support
🔹 POWER BUDGET: Total power budget at PSE up to 120 W
🔹 ETHERNET: 5× Gigabit Ethernet with speeds up to 1000 Mbps
🔹 MOUNTING: DIN rail and surface mounting options
(Power supply sold separately)
$79.00
First industrial unmanaged switch from Teltonika Networks. TSW100 is equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE). This rugged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both reliable data connection and power supply. Five-port, unmanaged full Gigabit Ethernet switch supporting Power-over-Ethernet (802.3af and 802.3at standards). This device is classified as power source equipment (PSE), and when used in this way, TSW100 switch enables centralization of the power supply, providing up to 30 watts of power per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
| Weight | 1.4 lbs |
|---|---|
| Dimensions | 4.53 × 3.74 × 1.26 in |
| LAN Ports | 5 |
| Brand | Teltonika |
| Model Number | TSW100 000010 |
| Dimensions | 115 mm × 95 mm × 32 mm (4.53 in. × 3.74 in. × 1.26 in.) |
| Temperature | –40 °C to 75 °C (–40 °F to 167 °F) |
| Product Family | Teltonika TSW |
| Product Type | PoE |
| Device Form Factor | PoE Switch |
| Accessory Type | PoE Switch |
| Interface | 10/100/1000M Ethernet |
| Power | 7 to 57 V DC |
| Certifications | ANRT (MAR), CE (EEA), E-Mark (EU), FCC (US), IC (CA), REACH (EU), RoHS (EU), UCRF (UKR), UKCA (UK), WEEE (EU) |
