☔ IP68 waterproof
$189.99

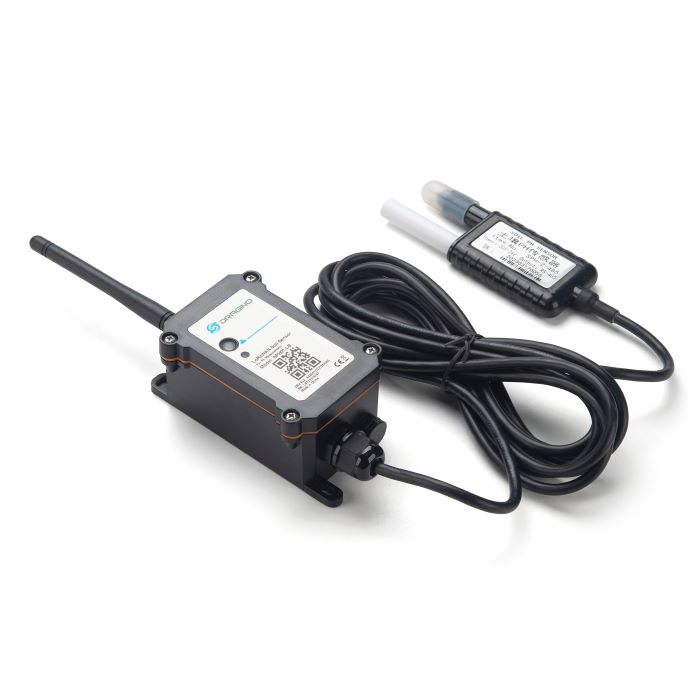

The Dragino SPH01-LB is an IP68 waterproof LoRaWAN soil pH and temperature sensor for IoT of Agriculture. The SPH01-LB probe consists of a solid AgCl reference electrode and a pure metal pH-sensitive electrode, allowing it to detect soil pH with high accuracy and stable value. The SPH01-LB probe can be buried in soil for long-term use.
The SPH01-LB uses LoRaWAN technology to send the various soil information, allowing for ultra-long-range spread-spectrum communication and high interference immunity while minimizing current consumption.
SPH01-LB supports BLE configuration and wireless OTA update for ease of use. SPH01-LB is powered by an 8500 mAh Li-SOCl₂ battery, designed for long-term use of up to 5 years.
Each SPH01-LB comes preloaded with a set of unique keys for LoRaWAN registrations, and registering these keys to a local LoRaWAN server will cause it to automatically connect after powering on.
| Weight | 1 lbs |
|---|---|
| Dimensions | 7.68 × 4.92 × 2.17 in |
| Brand | Dragino |
| Model Number | SPH01-LB |
| Dimensions | 195 mm × 125 mm × 55 mm (7.68 in. × 4.92 in. × 2.17 in.) |
| Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Sensor Form Factor | Sensor |
| Application | Agriculture |
| Technology | LoRaWAN |
| Sensor Type | Acidity/pH, Temperature |
| Power | 8500 mAh Li/SOCl₂ Battery |
| Battery Life | 5 Years |
| Warranty | 2 Years |
