Datalog and open alarm feature
$89.99

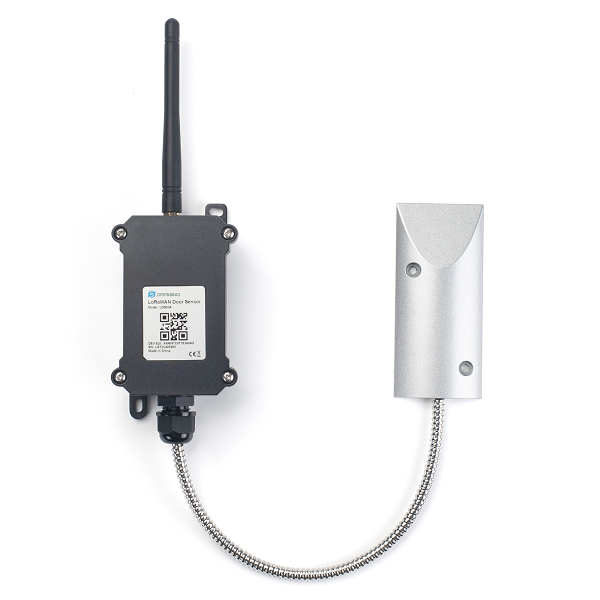

The Dragino LDS03A is a LoRaWAN door sensor. It detects door status and sends the data to an IoT server via a LoRaWAN network. The LDS03A sends data every day and (optionally) every time the door is open or closed. The door status, open time, and open counts are viewable in the IoT server.
LDS03A is powered by an 8500 mAh Li-SOCl₂ battery, designed for long-term use of up to 10 years.
The LDS03A has a datalog feature that records data even when there is no network coverage, allowing users to retrieve the logged sensor values. Additionally, the LDS03A features an open alarm system. For example, an alarm is sent if the door has been open for a set time length.
Each LDS03A comes preloaded with a set of unique keys for LoRaWAN registration that when registered, would automatically connect the device to the LoRaWAN server after powering on
| Weight | 1 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Brand | Dragino |
| Model Number | LDS03A |
| Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Sensor Form Factor | Sensor |
| Application | Condition Monitoring |
| Technology | LoRaWAN |
| Sensor Type | Door/Window |
| Power | 8500 mAh Li/SOCl₂ Battery |
| Battery Life | 10 Years |
| Warranty | 2 Years |
